T-Slot Bolts

t-slot bolts

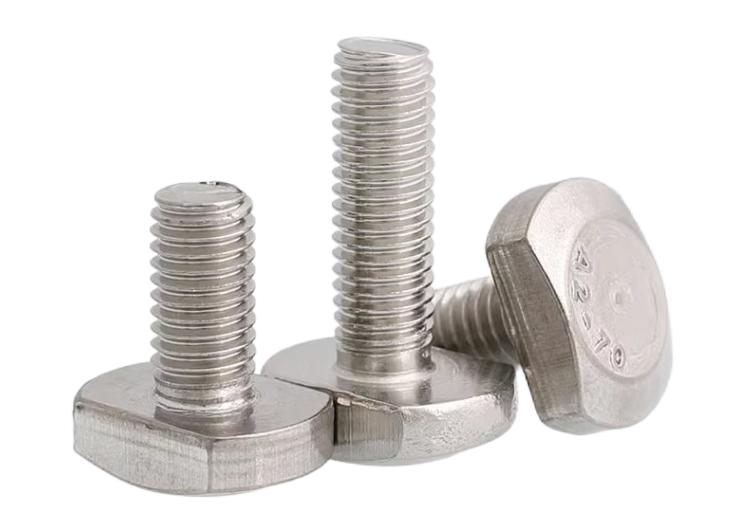

t bolts

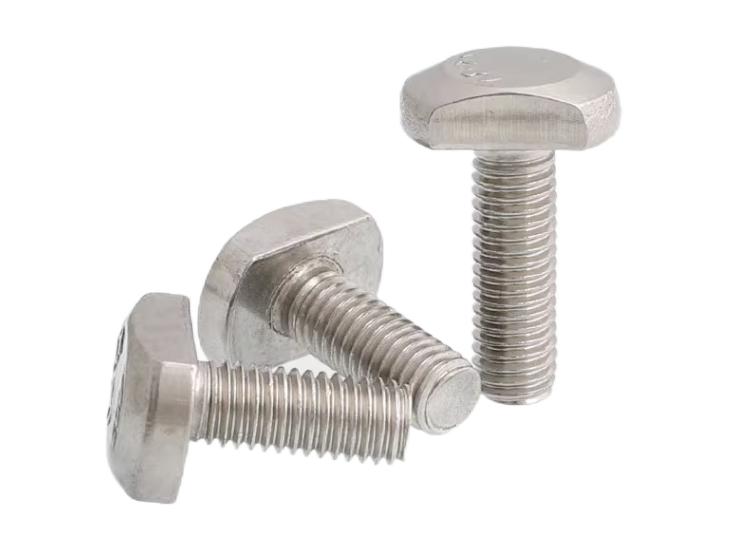

t slot bolts supplier

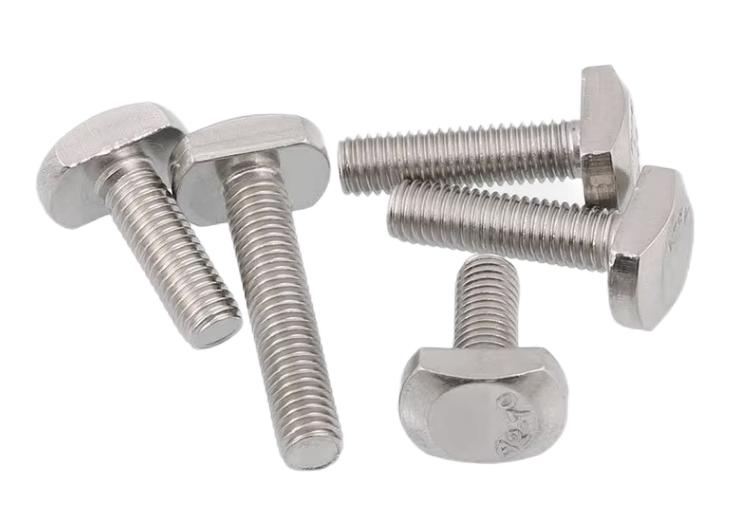

t-slot bolts manufacturer
  • t-slot bolts
  • t bolts
  • t slot bolts supplier
  • t-slot bolts manufacturer
    • Size: M5~M48
    • Material: carbon steel, alloy steel
    • Finishing: Galvanized, plain
    • Application: Widely used in construction, furniture, decoration, medical and many other industries field.

    Are You an OEM Manufacturer?

    Yes

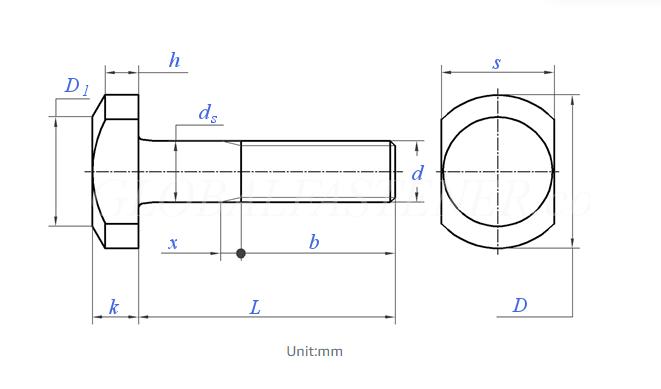

    Specifications Of T-Slot Bolts

    specifications of T-slot bolt
    Thread Size
    d     		M5 M6 M8 M10 M12 M16 M20 M24 M30 M36 M42 M48
      P          Pitch 0.8 1 1.25 1.5 1.75 2 2.5 3 3.5 3.5 4.5 5
      b L≤125 16 18 22 26 30 38 46 54 66 78 _ _
    125<L≤200 _ _ 28 32 36 44 52 60 72 84 96 108
    L>200 _ _ _ _ _ 57 65 73 85 97 109 121
      ds max 5 6 8 10 12 16 20 24 30 36 42 48
    min 4.70 5.70 7.64 9.64 11.57 15.57 19.48 23.48 29.48 35.38 41.38 47.38
    D 12 16 20 25 30 38 46 58 75 85 95 105
      k max 4.24 5.24 6.24 7.29 8.89 11.95 14.35 16.35 20.42 24.42 28.42 32.5
    min 3.76 4.76 5.76 6.71 8.31 11.25 13.65 15.65 19.58 23.58 27.58 31.5
    h 2.8 3.4 4.1 4.8 6.5 9 10.4 11.8 14.5 18.5 22.0 26.0
      S
                      		max 9 12 14 18 22 28 34 44 56 67 76 86
    min 8.64 11.57 13.57 17.57 21.16 27.16 33 43 54.8 65.1 74.1 83.8
      X           max 2.0 2.5 3.2 3.8 4.2 5 6.3 7.5 8.8 10 11.3 12.5
      Weight of per 1000
      steel products



    Materials we can use on T-Slot Bolts

    Application industries of T-Slot Bolts
