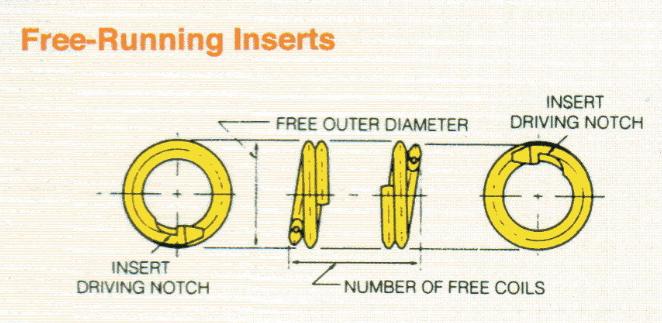

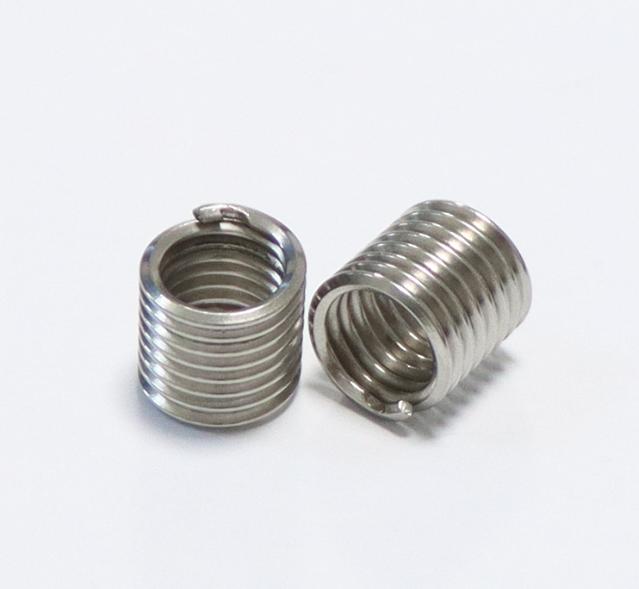

Tailless Wire Thread Insert

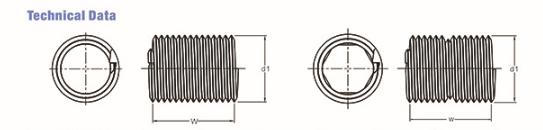

Specifications of Tailless Wire Thread Insert

Size	M（nominal）	Nominal length(mm)	pitch
M2.5*0.45*1d	M2.5	1d	0.45
M2.5*0.45*1.5d	M2.5	1.5d	0.45
M2.5*0.45*2d	M2.5	2d	0.45
M2.5*0.45*2.5d	M2.5	2.5d	0.45
M2.5*0.45*3d	M2.5	1d	0.45
M3*0.5*1d	M3	1d	0.5
M3*0.5*1.5d	M3	1.5d	0.5
M3*0.5*2d	M3	2d	0.5
M3*0.5*2.5d	M3	2d	0.5
M4*0.7*1d	M4	1d	0.7
M4*0.7*1.5d	M4	1.5d	0.7
M4*0.7*2d	M4	2d	0.7
M4*0.7*2.5d	M4	2.5d	0.7
M4*0.7*3d	M4	3d	0.7
M5*0.8*1d	M5	1d	0.8
M5*0.8*1.5d	M5	1.5d	0.8
M5*0.8*2d	M5	2d	0.8
M5*0.8*2.5d	M5	2.5d	0.8
M5*0.8*3d	M5	3d	0.8
M6*1.0*1d	M6	1d	1
M6*1.0*1.5d	M6	1.5d	1
M6*1.0*2d	M6	2d	1
M6*1.0*2.5d	M6	2.5d	1
M6*1.0*3d	M6	3d	1
M8*1.25*1d	M8	1d	1.25
M8*1.25*1.5d	M8	1.5d	1.25
M8*1.25*2d	M8	2d	1.25
M8*1.25*2.5d	M8	2.5d	1.25
M8*1.25*3d	M8	3d	1.25
M10*1.5*1d	M10	1d	1.5
M10*1.5*1.5d	M10	1.5d	1.5
M10*1.5*2d	M10	1.5d	1.5
M10*1.5*2.5d	M10	2.5d	1.5
M10*1.5*3d	M10	3d	1.5
M12*1.75*1d	M12	1d	1.75
M12*1.75*1.5d	M12	1.5d	1.75
M12*1.75*2d	M12	2d	1.75
M12*1.75*2.5d	M12	3d	1.75
M12*1.75*3d	M12	22	1.75

Advantages of KENENG Tailless Wire Thread Insert

1, Without installation tail handle design, can be installed quickly.

2, The tailless screw sleeve has no direction and is easy to operate.

3, Wide range of applications, both metal and non-metal materials can be used.

4, It can help to enhance the wear resistance, heat resistance and anti-corrosion performance of the internal thread of the screw hole.

Application industries of Tailless Wire Thread Insert
