The Vital Role of Rivets for Aerospace Applications

Rivets play an essential role in the assembly and structural integrity of aerospace components. These simple yet highly effective fastening devices are used extensively in the construction of both civilian and military aircraft, spacecraft, and other aerospace structures. The use of rivets in aerospace applications ensures high strength, reliability, and durability, making them crucial for maintaining the safety and performance of these advanced systems.

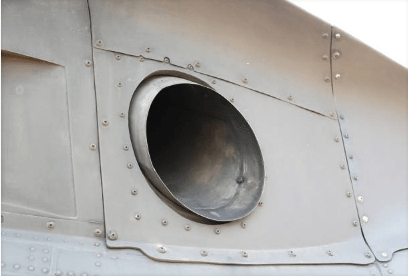

Importance of Rivets in Aerospace

Rivets have been used in aerospace engineering for decades, primarily due to their ability to create secure, strong joints without the need for welding or other more complex techniques. In aerospace, where weight reduction is a priority and the stresses on materials are significant, rivets offer a combination of strength and lightness that is unmatched by other fastening methods.

The aerospace rivets can hold various materials such as aluminum, titanium, and composites together, making them indispensable for airframe assembly, engine construction, and wing attachment.

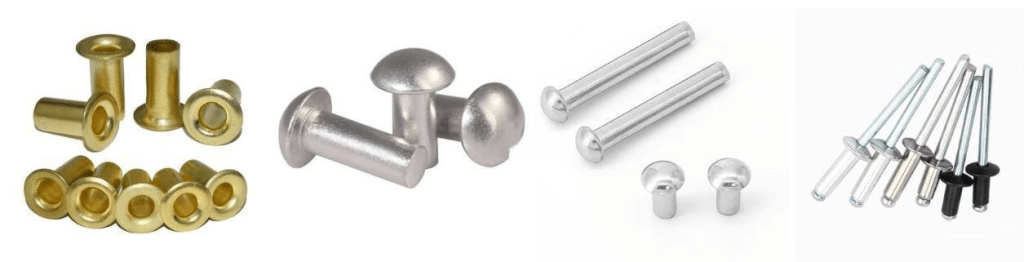

Types of Rivets Used in Aerospace Applications

This chart provides a quick reference for understanding the different types of rivets used in aerospace and their specific roles in ensuring aircraft safety, efficiency, and durability.

Type of Rivet	Description	Common Applications
Solid Rivets	Traditional rivets with a single piece, requiring access to both sides of the joint for installation.	Airframes, wing assemblies, fuselage, and structural components.

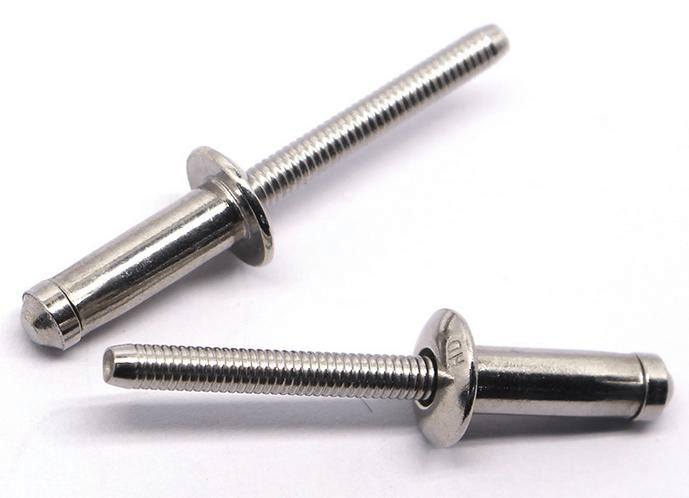

Blind Rivets	Installed from one side of the joint, ideal for inaccessible areas.	Interior panels, hidden joints, and components with limited access.
Cherry Rivets	A type of blind rivet with a unique, easy-to-install design for high-volume production.	Aircraft body panels, seat structures, and non-critical joints.
Flush Rivets	Designed to sit flush with the surface to reduce aerodynamic drag.	Exterior surfaces of aircraft wings, fuselages, and fairings.
Self-Sealing Rivets	Used to prevent fluid leakage by incorporating a rubber seal inside the rivet.	Fuel tanks, pressurized chambers, and hydraulic systems.
Tapered Rivets	Feature a tapered body for use in areas where precision fit is critical.	Structural joints, particularly in thin-walled materials.
Solid Shank Rivets	A stronger version of the solid rivet used in high-stress areas.	High-stress zones such as engine mounts and landing gear assemblies.
Monel Rivets	Made from a nickel-copper alloy, offering excellent resistance to corrosion and high temperature.	Marine, aerospace, and high-stress environments.
Hi-Lok Rivets	A high-strength fastener that combines the features of a bolt and rivet.	Critical aerospace components requiring high shear strength.
Frangible Rivets	Designed to break away under a controlled force, often used for safety or emergency release mechanisms.	Emergency systems, escape routes, and safety-critical applications.

Design Considerations for Rivets in Aerospace Applications

1. Material Selection

The choice of material for rivets plays a pivotal role in determining their strength, weight, corrosion resistance, and overall performance. The material must meet the specific requirements of the aerospace component it is used in, such as:

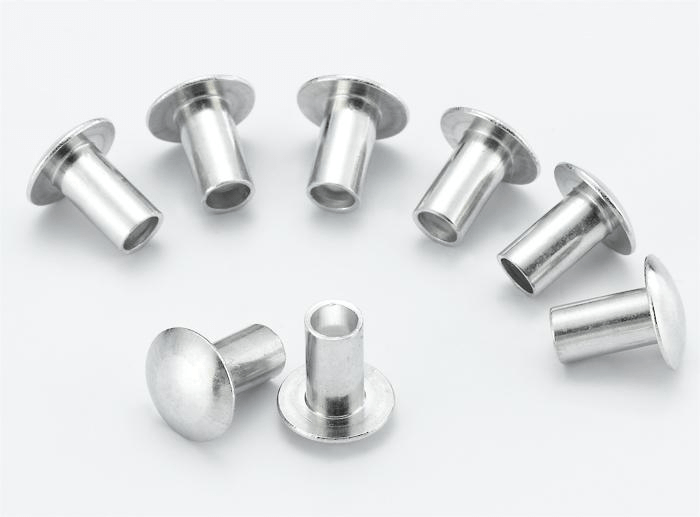

Aluminum Alloys: Lightweight, corrosion-resistant, and cost-effective, aluminum rivets are commonly used in airframe assembly and other structural parts.
Titanium Alloys: For high-temperature applications and areas requiring exceptional strength-to-weight ratios, titanium rivets are used, particularly in engine components.
Stainless Steel: Stainless steel rivets provide excellent strength and resistance to corrosion, ideal for areas exposed to extreme stress and harsh environments, such as landing gear assemblies.
Inconel: For components exposed to high temperatures, Inconel rivets are employed, particularly in jet engines and turbines.

Material properties, such as tensile strength, shear strength, fatigue resistance, and resistance to temperature fluctuations, must be carefully considered during the design phase.

2. Rivet Size and Strength

Selecting the appropriate rivet size is essential to ensure the joint’s integrity under various loading conditions, including shear, tension, and fatigue. The rivet must be sized to distribute the forces evenly across the joint and prevent failure due to excessive stress. Key factors include:

Diameter: The diameter of the rivet determines its load-bearing capacity. Larger diameters may be used for high-stress areas, while smaller rivets can be employed where the load is lower.
Length: Rivet length must be chosen to ensure sufficient grip for the materials being fastened. Too long a rivet can cause excessive deformation, while too short a rivet may fail to hold the materials securely.
Shear and Tensile Strength: The rivet must be capable of withstanding the shear forces (parallel to the joint) and tensile forces (pulling the materials apart) that the aircraft structure will experience during operation.

3. Joint Design and Rivet Placement

The design of the joint, including the placement and number of rivets, significantly affects the rivet’s performance. Considerations include:

Pitch and Spacing: The distance between rivets (pitch) must be optimized to ensure a strong connection without compromising the material’s integrity. Closer spacing increases the joint strength but can weaken the surrounding material.
Grip Length: The grip length refers to the total thickness of the materials being joined. The rivet should have a sufficient grip length to create a strong connection between the parts.
Access for Installation: In some areas, access to the rivet joint may be limited. Blind rivets, which can be installed from one side of the joint, are used in such cases, while solid rivets require access to both sides for installation.
Load Distribution: Proper rivet placement ensures the forces are evenly distributed across the joint. Overloading a single rivet or misplacing rivets in high-stress areas can lead to failure.

4. Corrosion Resistance

Aerospace rivets expose to harsh environmental conditions, including moisture, saltwater, extreme temperatures, and corrosive fuels or chemicals. To ensure durability, rivet materials must be resistant to corrosion, and the design may incorporate the following:

Corrosion-Resistant Alloys: Aluminum alloys with added copper or manganese, titanium, and stainless steel are chosen for their excellent resistance to corrosion.
Protective Coatings: Coatings like cadmium plating, anodizing, or painting can be applied to rivets to provide an additional layer of protection against corrosion, particularly for rivets used in the exterior of aircraft or in saltwater environments.
Sealing Rivets: For sealed compartments, such as fuel tanks or pressurized areas, self-sealing rivets or rivets with a rubber O-ring can prevent leakage and corrosion.

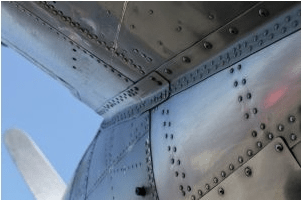

5. Aerodynamic Considerations

In aerospace, minimizing drag is a key concern for performance and fuel efficiency. Rivets that protrude from the surface can create turbulence and increase drag, reducing the aircraft’s fuel efficiency and performance. To address this:

Flush Rivets: Flush rivets are designed to sit level with the surface of the material, preventing aerodynamic drag and ensuring a smooth exterior finish. They are often used on the outer surfaces of wings and fuselages, where airflow is critical.
Aerodynamic Head Design: For some applications, rivets may be designed with special heads that are optimized to minimize drag while maintaining a secure and strong joint.

6. Environmental and Regulatory Compliance

The aerospace industry is heavily regulated, and rivets must meet stringent standards for safety and performance. These standards often include compliance with aerospace certifications such as:

FAA (Federal Aviation Administration) Standards: Rivets used in the construction of commercial aircraft must meet FAA regulations regarding materials, strength, and performance.
ISO and MIL-SPEC Standards: Rivets used in military or aerospace applications must meet the specifications outlined by organizations such as the International Organization for Standardization (ISO) or the U.S. military (MIL-SPEC) for critical components.

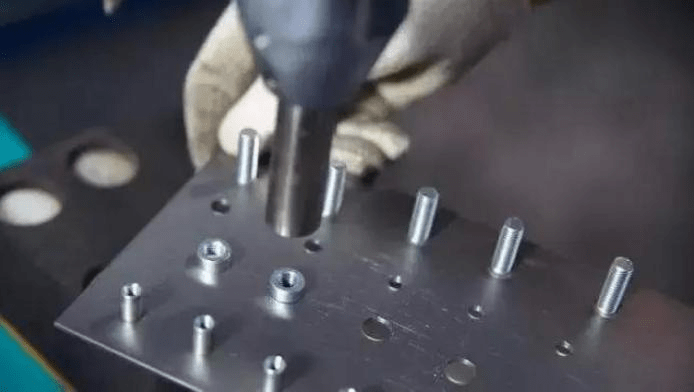

Rivet Installation Process in Aerospace Applications

This chart outlines the standard rivet installation process in aerospace, emphasizing key steps from preparation to inspection to ensure secure, reliable connections that meet strict safety standards.

Step	Description	Key Considerations
1. Joint Preparation	Ensure the surfaces to be riveted are clean, smooth, and properly aligned.	Surface cleanliness, alignment, and hole sizing are crucial for optimal rivet performance.
2. Rivet Selection	Choose the appropriate rivet type, based on load requirements, environmental factors, and joint configuration.	Rivet material (e.g., aluminum, titanium) should match the materials being joined.
3. Hole Drilling	Drill holes in the materials to be joined, ensuring they are the correct size and in the right location.	Hole diameter and spacing are critical for proper rivet installation.
4. Insertion of Rivet	Insert the rivet into the prepared hole, ensuring it is positioned correctly for installation.	The rivet should be centered and flush with the surface to avoid misalignment.
5. Rivet Setting	Use manual, pneumatic, or automated tools to apply pressure to the rivet, deforming it to create a secure joint.	Proper setting force is required to avoid over- or under-setting the rivet.
6. Rivet Bucking (if required)	In some cases (e.g., solid rivets), the rivet is bucked (deformed) using a bucking bar on the back side of the joint.	The rivet must be properly deformed to ensure a strong connection.
7. Inspection	Inspect the rivet for proper installation, checking for correct deformation, flushness, and tightness.	Ensure there is no excessive gap, misalignment, or improper deformation.
8. Final Cleaning	Clean the rivet area to remove any debris, oils, or residues that may affect structural integrity.	Clean joints to avoid contamination that could weaken the rivet or cause corrosion.
9. Nondestructive Testing	Perform testing such as ultrasonic or X-ray inspections to detect hidden defects or weaknesses.	Crucial for safety-critical aerospace components to ensure rivets have been installed correctly and are free from internal defects.
10. Documentation	Record the rivet type, size, material, installation parameters, and inspection results for future reference.	Ensures traceability and compliance with aerospace standards and regulations.

Challenges and Innovations in Rivets for Aerospace Applications

1. Weight Reduction

Issue: The aerospace industry is continuously focused on reducing weight to improve fuel efficiency and overall performance. Rivets, while strong, can add significant weight to an aircraft, especially when used in large quantities across structural components.

Innovation:

Lightweight Materials: The use of advanced materials such as titanium and composite-based rivets helps reduce weight without compromising strength. These materials are lightweight yet offer superior strength-to-weight ratios.
Optimized Rivet Design: New designs aim to minimize material usage while maintaining the structural integrity of joints. For instance, hollow rivets are being developed to reduce weight without sacrificing performance.
Nanomaterials: Research into nanomaterials could lead to stronger, lighter rivets with enhanced properties, such as higher corrosion resistance and better fatigue performance.

2. Fatigue Resistance

Issue: Aerospace rivets are subject to cyclic loading, which can lead to fatigue failure over time. Fatigue cracks that develop in rivets can propagate, compromising the integrity of the aircraft structure.

Innovation:

High-Strength Alloys: The development of new high-strength alloys and heat-treated materials increases the fatigue resistance of rivets.
Fatigue-Resistant Coatings: Special coatings, such as diamond-like carbon (DLC), are being applied to rivets to improve their resistance to wear and fatigue, especially in high-stress areas like engine components.
Rivet Geometry Optimization: Innovative rivet head designs and optimized tail shapes help distribute stress more evenly, reducing the risk of fatigue failure.

3. Installation Accessibility

Issue: In many aerospace applications, access to the rivet joint is limited. Installing rivets in tight spaces, particularly in internal parts of the aircraft, can be challenging, limiting the use of solid rivets and complicating the assembly process.

Innovation:

Blind Rivets: The use of blind rivets, which can be installed from one side of the joint, has revolutionized rivet installation in inaccessible areas.
Self-Setting Rivets: New self-setting rivet designs allow for easier installation in tight spaces, reducing installation time and improving productivity.
Robotic Riveting: Automated riveting using robotic arms and advanced positioning systems is an emerging innovation in aircraft assembly. This method enhances the precision and speed of rivet installation, even in difficult-to-reach areas.

4. Thermal Expansion

Issue: Rivets in aerospace structures are exposed to significant temperature variations, especially in engine components or external surfaces during flight. These temperature fluctuations can lead to differential expansion between the rivet and the surrounding materials, causing joint weakening or failure.

Innovation:

Thermally Stable Materials: Rivets made from Inconel and other high-temperature alloys are increasingly used in areas with extreme temperature fluctuations, as these materials maintain their strength and shape under thermal stress.
Tailored Coatings: Rivet coatings that better match the thermal expansion coefficients of the surrounding materials help mitigate the issues caused by thermal cycling.
Advanced Rivet Designs: Innovations in rivet design, such as incorporating expansion joints within the rivet or thermal expansion compensators, help alleviate the stress caused by temperature changes.

5. Environmental Impact

Issue: The aerospace industry is under pressure to reduce its environmental impact. Rivets often involve the use of metals that require significant energy to extract and process, contributing to the carbon footprint of the manufacturing process.

Innovation:

Recyclable Materials: There is a push toward using more recyclable materials, such as aluminum alloys and composite materials that can be easily reused, reducing waste and environmental impact.
Sustainable Manufacturing Processes: Innovative manufacturing techniques, such as additive manufacturing (3D printing), offer the potential for producing rivets with minimal waste and energy consumption.
Green Coatings: The development of environmentally friendly coatings that avoid toxic substances such as chromates has become a significant trend to ensure compliance with environmental regulations.

6. Cost

Issue: High-performance aerospace rivets are designed with a higher cost due to the use of specialized materials and manufacturing processes. Reducing the cost of rivets while maintaining performance and safety is a persistent challenge.

Innovation:

Advanced Manufacturing Techniques: New manufacturing processes such as laser welding and precision casting offer more cost-effective ways to produce high-quality rivets with less material waste.
Automation: The automation of rivet manufacturing and installation helps reduce labor costs and increases production efficiency, lowering the overall cost of rivet-based fastenings in aerospace assembly.
Bulk Purchasing and Standardization: Standardizing rivet designs and materials across different aerospace applications and negotiating bulk purchasing agreements can help reduce costs.

7. High-Stress Environments

Issue: Rivets used in critical aerospace applications, such as engine components and landing gear, must endure extreme stress and force. These components are subject to high dynamic loads and must maintain their integrity under challenging conditions.

Innovation:

High-Strength Alloys and Hybrid Materials: New hybrid materials combining metals and composites offer improved performance in high-stress areas, enabling rivets to withstand extreme loads without failure.
Advanced Testing Techniques: Enhanced testing techniques such as finite element analysis (FEA) and stress analysis software help engineers design rivets that can endure the most demanding conditions without compromising safety.

Custom Copper Countersunk Head Solid Rivet

Final Thoughts

The ability of rivets to provide secure and permanent fastenings makes them indispensable in the high-stress, high-performance environments of the aerospace industry. As technology advances, rivet design and installation processes will continue to evolve, ensuring that aerospace rivets meet the challenges of the future.
