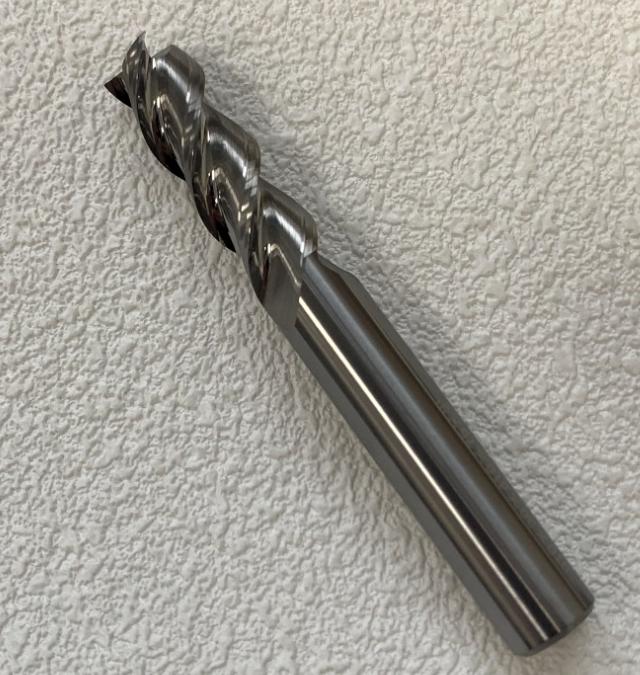

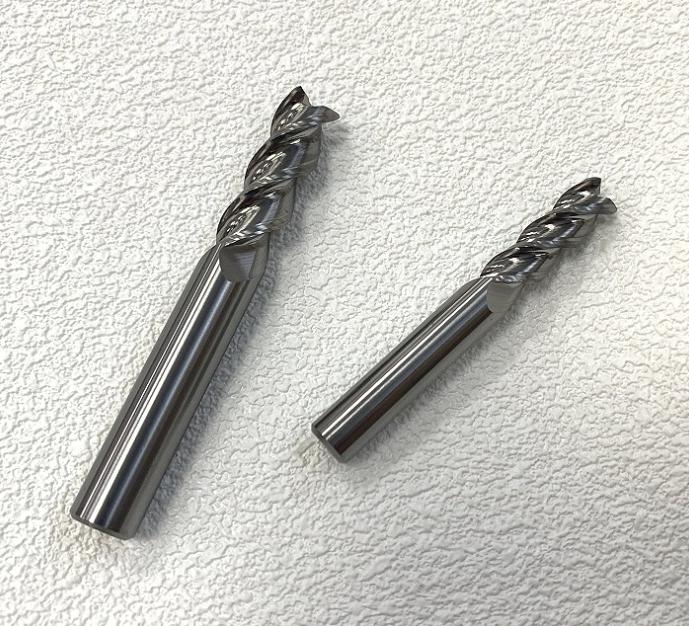

Three-flute 58° Tungsten Steel End Mill for Aluminum

  • Material: Imported tungsten steel
  • Number of Blades: 3 Blades
  • Spiral angle:  58°
  • HRC: 55
  • Process: unequal helix, unequal segmentation

Are You an OEM Manufacturer?

Yes

Specifications of Three-flute 58° Tungsten Steel End Mill for Aluminum

Model Blade Diameter Blade Length Shank Diameter Overall Length
D1.0*3.0C*4D*50L*3F 1.0     3  4  50
D1.5*5.0C*4D*50L*3F 1.5     5  4  50
D2.0*6.0C*4D*50L*3F 2.0     6  4  50
D2.5*8.0C*4D*50L*3F 2.5     8  4  50
D3.0*8.0C*6D*50L*3F 3.0     8  6  50
D4.0*11C*6D*50L*3F 4.0    11  6  50
D5.0*13C*6D*50L*3F 5.0    13  6  50
D6.0*16C*6D*50L*3F 6.0    16  6  50
D8.0*20C*8D*60L*3F 8.0    20  8  60
D10*25C*10D*75L*3F 10.0    25  10  75
D12*30C*12D*75L*3F 12.0    30  12  75
D14*35C*16D*100L*3F 14.0    35  16  100
D16*40C*20D*100L*3F 16.0    40  16  100
D18*40C*20D*100L*3F 18.0    40  20  100
D20*40C*20D*100L*3F 20.0    40  20  100

Advantages of Three-flute 58° Tungsten Steel End Mill for Aluminum

  • When using an end mill for high-feed machining of high-strength aluminum with three unequal cutting edges, there are no tool lines and it is suitable for high-gloss machining
  • Smooth cutting with a precision polishing edge, made by imported machine tool precision polishing, ensuring the consistency of the edge and making the cutting sharper.
  • Imported raw materials have stronger wear resistance, high product smoothness, smooth cutting, and high-temperature resistance.
  • Ultra-fine grain hard alloy, made of imported tungsten steel alloy material with ultra-fine grains, has good toughness and high hardness, greatly improving wear resistance.
  • The universal chamfered round handle of the milling cutter is easy to use and has good compatibility, enhancing its shock resistance and cutting speed.

Superior Features of Three-flute 58° Tungsten Steel End Mill for Aluminum

  1. Ultra large chip removal, ultra large capacity chip tapping with powerful cutting, smoother and more efficient processing, resulting in a more glossy work piece.
  2. Unequal segmentation design, unique tool tip protection, can achieve high flatness and accuracy during high feed processing without easily breaking corners and flat processing.
  3. Fully ground cutting edge makes the milling cutter more wear-resistant, reduces product burrs during processing, and does not stick to the tool.

Why Choose KENENG as a Reliable Supplier of Three-flute 58° Tungsten Steel End Mill for Aluminum

1. KENENG has many years of experience in high-precision hardware CNC lathe machining.

2. KENENG uses high-precision measuring tools and advanced testing equipment to inspect all parts and processes from incoming materials to final inspection. KENENG ensures that only qualified products are delivered to customers.

3. Competitive pricing: KENENG has stable raw material suppliers who can quickly provide customers with competitive quotes. Mature technology and rich experience in surface strengthening treatment, strong pressure treatment, elimination of internal stress during use, making elasticity more stable.

4. Engineering support: No matter how many parts customers require, we have a professional team of engineers to provide technical support.

Materials we can use on Three-flute 58° Tungsten Steel End Mill for Aluminum
