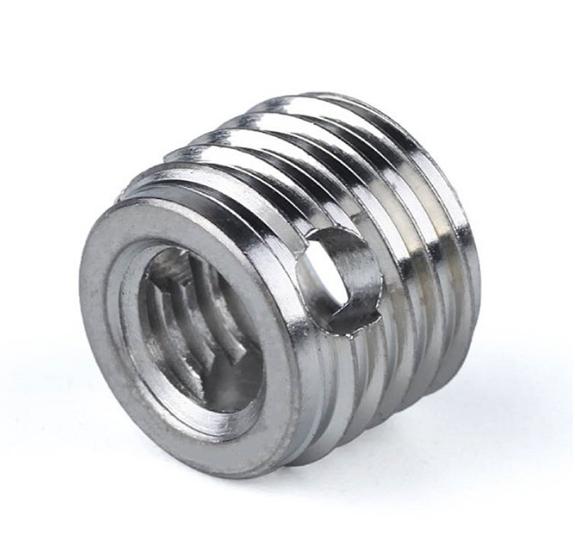

Three-Hole Type Tapping Thread Bushing
Specification of Three-Hole Type Tapping Thread Bushing
| 308 Type(Three-hole type) | Common Code | 308 Type Length | External thread | Reference drilling hole diameter | Minimum drilling hole depth | ||
| Metric | Imperial | Plastic | Aluminum alloy | 308type | |||
| M3-0.5 | U#4-40 |
307 000 030.. 308 000 030.. |
6 | M5-0.6 | 4.6-4.7 | 4.7-4.8 | 8 |
| M4-0.7 | U#8-32 |
307 000 040.. 308 000 040.. |
8 | M6.5-0.8 | 6.0-6.1 | 6.1-6.2 | 10 |
| M5-0.8 | U#10-24 |
307 000 050.. 308 000 050.. |
10 | M8-1.0 | 7.4-7.5 | 7.6-7.7 | 13 |
| M6-1.0 | U1/4-20 |
307 000 060.. 308 000 060.. |
12 | M10-1.25 | 9.3-9.4 | 9.5-9.6 | 15 |
| M8-1.25 | U5/16-18 |
307 000 080.. 308 000 080.. |
14 | M12-1.5 | 11.1-11.3 | 11.3-11.5 | 17 |
| M10-1.5 | U3/8-16 |
307 000 100.. 308 000 100.. |
18 | M14-1.5 | 13.1-13.3 | 13.3-13.5 | 22 |
| M12-1.75 | U7/16-14 |
307 000 120.. 308 000 120.. |
22 | M16-1.75 | 15.0-16.2 | 15.3-15.5 | 26 |
| M14-2.0 | U1/2-13 |
307 000 140.. 308 000 140.. |
24 | M18-2.0 | 17.0-17.2 | 17.3-17.5 | 28 |
| M16-2.0 | U5/8-11 |
307 000 160.. 308 000 160.. |
24 | M20-2.0 | 19.0-19.2 | 19.3-19.5 | 28 |
Application of Three-Hole Type Tapping Thread Bushing

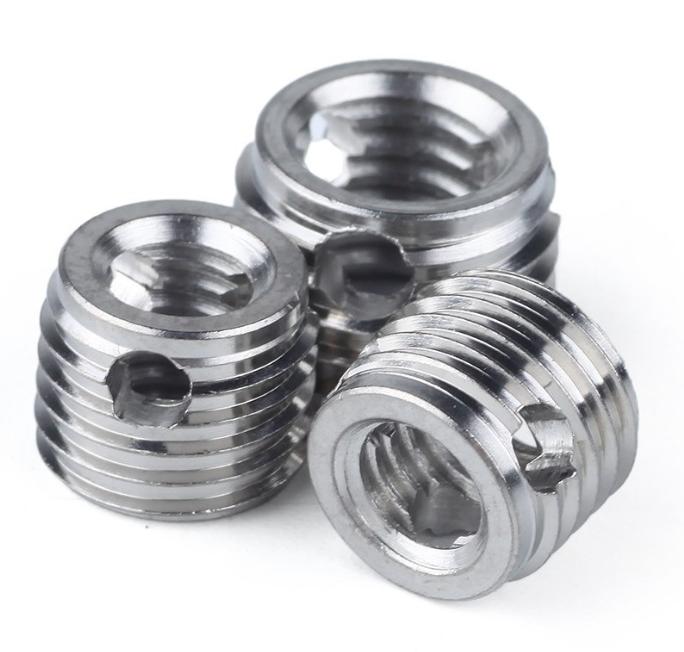

The Three-Hole Type Tapping Thread Bushing is a new type of fastener that makes the thread strengthens. The three-hole self-tapping thread insert can form a higher-strength internal thread hole when it embedded in soft materials such as plastic, aluminum alloy, cast iron, copper, etc. It can also repair the damaged internal thread.
Advantages of Three-Hole Type Tapping Thread Bushing
1. No need to pre-tapped on the base material when use the Three-Hole Type Tapping Thread Bushing.
2. Three-Hole Type Tapping Thread Bushing with function of repairing the broken female thread, and a same screw can be used on it after the thread is repaired.
3. Three-Hole Type Tapping Thread Bushing has strong resistance to vibration and can prevent loosening.
4. Three-Hole Type Tapping Thread Bushings are easier and faster to install than ordinary wire threaded inserts.
Materials we can use on Three-Hole Type Tapping Thread Bushing
