Tips for Ensuring the Disc Springs Load Distribution
Disc springs, also known as Belleville springs, are conical-shaped components widely used in various mechanical applications due to their ability to provide high force in a small space. Ensuring optimal load distribution in disc springs is crucial for enhancing their performance, longevity, and reliability.
Understanding Load Distribution in Disc Springs
Disc springs are designed to support axial loads with minimal deflection. The load distribution across the spring’s surface is a critical factor that influences its efficiency and durability. Poor load distribution can lead to uneven stress, premature wear, and potential failure.
Here is a chart summarizing the key aspects of understanding load distribution in disc springs
| Aspect | Description |
| Load Distribution | The way the applied force is spread across the surface and through the thickness of the disc spring. Uniform load distribution is crucial to avoid stress concentrations and premature failure. |
| Stress and Strain | Stress: Internal force per unit area within the disc spring due to the external load. Strain: Deformation or displacement of the disc spring material due to the applied load. |
| Factors Affecting Load Distribution | 1. Geometry and Design: Shape and thickness influence load distribution. Optimized geometry ensures even distribution. 2. Material Properties: Elasticity and fatigue strength impact load handling. 3. Surface Finish and Treatment: Smooth surfaces and protective coatings reduce stress concentrations. 4. Manufacturing Quality: Precision and consistency in manufacturing ensure better load distribution. 5. Load Application and Alignment: Even load application and proper alignment during installation prevent uneven distribution. |
Strategies to Improve Load Distribution in Disc Springs
1. Optimal Design and Geometry

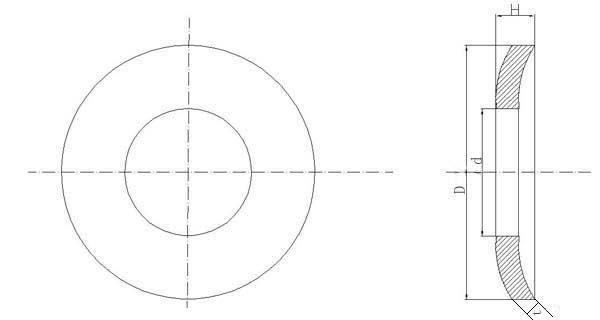

Curvature and Thickness
- Adjusting the curvature and thickness of the disc spring can significantly impact load distribution. A well-designed spring with an appropriate curvature ensures uniform stress distribution.
- Properly calculated dimensions help in reducing stress concentrations and enhancing load distribution.
Tapered Cross-Section
- Implementing a tapered cross-section design can help distribute the load more evenly across the spring’s surface, reducing peak stresses.
Stacking Configuration
- Stacking multiple disc springs in series or parallel configurations can distribute the load more evenly and increase the overall load capacity.
- Using series stacking increases flexibility, while parallel stacking increases load capacity.
2. Material Selection
High-Quality Materials
- Choosing materials with high fatigue strength and good elastic properties ensures better load distribution. Common materials include high-carbon steel, stainless steel, and alloy steel.
- Selecting materials that can withstand the operational environment (temperature, corrosion, etc.) ensures long-term performance.
Heat Treatment
- Proper heat treatment can enhance the mechanical properties of the material, such as toughness and fatigue resistance, leading to improved load distribution and spring performance.
3. Surface Finish and Coatings
Smooth Surface Finish
- Ensuring a smooth surface finish reduces stress concentrations and enhances load distribution. Surface imperfections can act as stress risers and lead to premature failure.
Protective Coatings
- Applying coatings like zinc, phosphate, or other anti-corrosion treatments can improve the spring’s durability and performance under load by protecting against environmental factors.
4. Load Application and Alignment
Even Load Application
- Ensuring that the load is applied evenly across the entire surface of the disc spring is crucial. Uneven load application can cause localized stress and reduce the spring’s effectiveness.
Proper Alignment
- Maintaining proper alignment of the disc spring during installation and operation ensures uniform load distribution and prevents bending or misalignment stresses.
5. Advanced Manufacturing Techniques
Precision Manufacturing
- Utilizing advanced manufacturing techniques such as CNC machining and laser cutting can produce disc springs with precise dimensions and consistent quality, leading to better load distribution.
Quality Control
- Implementing rigorous quality control measures during manufacturing ensures that each disc spring meets the required specifications and performance standards.
6. Practical Implementation Steps
Here is a chart outlining the key implementation steps to enhance load distribution in disc springs effectively.
| Step | Description |
| 1. Design Optimization | Perform detailed design analysis to optimize geometry and material properties. 2. Use simulations to predict load distribution and identify stress points. |
| 2. Material Selection | Choose high-quality materials with suitable mechanical properties, considering fatigue strength, elasticity, and environmental resistance. |
| 3. Manufacturing and Surface Treatment | Utilize precision manufacturing techniques for consistent quality. 2. Apply appropriate surface treatments to enhance durability. |
| 4. Load Application | Ensure even load application across the entire surface of the disc spring and maintain proper alignment during installation and operation. |
| 5. Testing and Validation | Conduct thorough testing to validate design and performance under various load conditions. 2. Adjust based on test results for optimal performance. |
Get Disc Springs with Optimal Load Distribution from KENENG
Introduction of KENENG

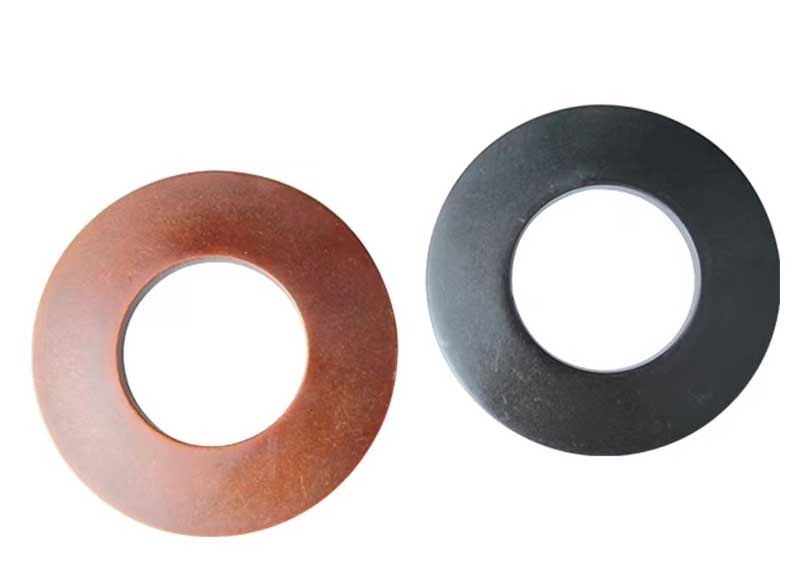

KENENG specializes in the design and production of both stock and custom disc springs in various sizes and configurations. As an excellent disc spring manufacturer, our unmatched production capabilities ensure high-quality supply, materials, applied finishes, and optional certifications. KENENG also stocks many standard sizes.

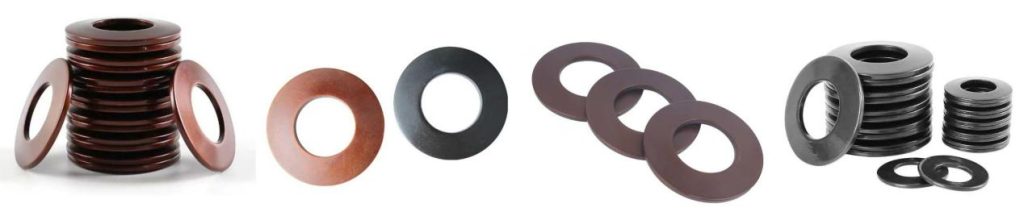

KENENG can manufacture a range of high-quality disc springs, including anti-loose disc springs, high-temperature pre-tightening disc springs, high torsion pre-tightening disc springs, and buffer stretching disc springs.
Why Choose KENENG Disc Springs
KENENG offers high-performance disc springs engineered for optimal load distribution, ensuring superior performance and longevity. Our disc springs are designed with precision geometry and manufactured using high quality materials and advanced techniques. This results in consistent, reliable performance, making them ideal for demanding applications. Trust KENENG for disc springs that deliver enhanced load distribution, durability, and efficiency.
