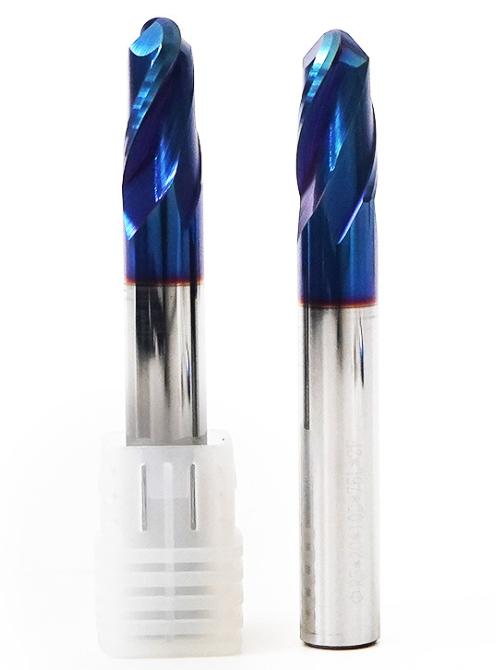

Two Bladed 65° Ball Nose Tungsten Steel End Mill

  • Material: Imported tungsten steel
  • Number of Blades: 2 Blades
  • Spiral angle:  65°
  • Process: unequal helix, unequal segmentation

Are You an OEM Manufacturer?

Yes

Specifications of Two Bladed 65° Ball Nose Tungsten Steel End Mill

Model Blade Diameter Blade Length Shank Diameter Overall Length
R0.5*3.0C*4D*50L*2F   1.0     3  4  50
R0.75*5.0C*4D*50L*2F   1.5     5  4  50
R1.0*6.0C*4D*50L*2F  2.0     6  4  50
R1.5*8.0C*6D*50L*2F  3.0     8  6  50
R2.0*11C*6D*50L*2F  4.0     11  6  50
R2.5*13C*6D*50L*2F  5.0     13  6  50
R3.0*16C*6D*50L*2F  6.0     16  6  50
R4.0*20C*8D*60L*2F  8.0    20  8  60
R5.0*25C*10D*75L*2F  10.0    25  10  75
R6.0*30C*12D*75L*2F   12.0    30  12  75
R7.0*35C*16D*100L*2F  14.0    35  16  100
R8.0*40C*20D*100L*2F   16.0    40  16  100
R9.0*40C*20D*100L*2F   18.0    40  20  100
R10.0*40C*20D*100L*2F   20.0    40  20  100

Excellent Characteristics of Two Bladed 65° Ball Nose Tungsten Steel End Mill

  • When using an end mill with two unequal cutting edges for high-feed machining of high-strength aluminum, it leaves no tool marks and is ideal for achieving a high-gloss finish.
  • Experience smooth cutting with a precision-polished edge, crafted by imported machine tools to ensure edge consistency and enhance sharpness.
  • Made from imported raw materials, the tool offers superior wear resistance, high product smoothness, smooth cutting, and excellent high-temperature resistance.
  • The ultra-fine grain hard alloy, crafted from imported tungsten steel with ultra-fine grains, provides excellent toughness and high hardness, significantly enhancing wear resistance.
  • The universal chamfered round handle of the milling cutter is user-friendly and highly compatible, improving shock resistance and cutting speed.

Why Choose KENENG as a Trusted Manufacturer of Two Bladed 65° Ball Nose Tungsten Steel End Mill

1. KENENG has many years of experience in high-precision hardware CNC lathe machining.

2. KENENG uses high-precision measuring tools and advanced testing equipment to inspect all parts and processes from incoming materials to final inspection. KENENG ensures that only qualified products are delivered to customers.

3. Engineering support: No matter how many parts customers require, we have a professional team of engineers to provide technical support.

Materials we can use on Two Bladed 65° Ball Nose Tungsten Steel End Mill
