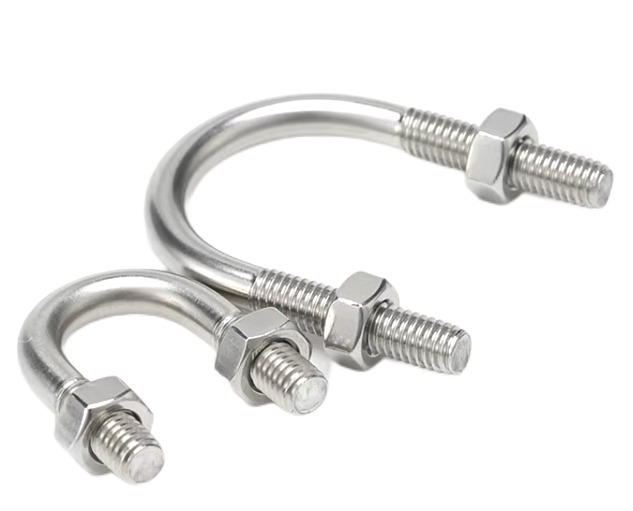

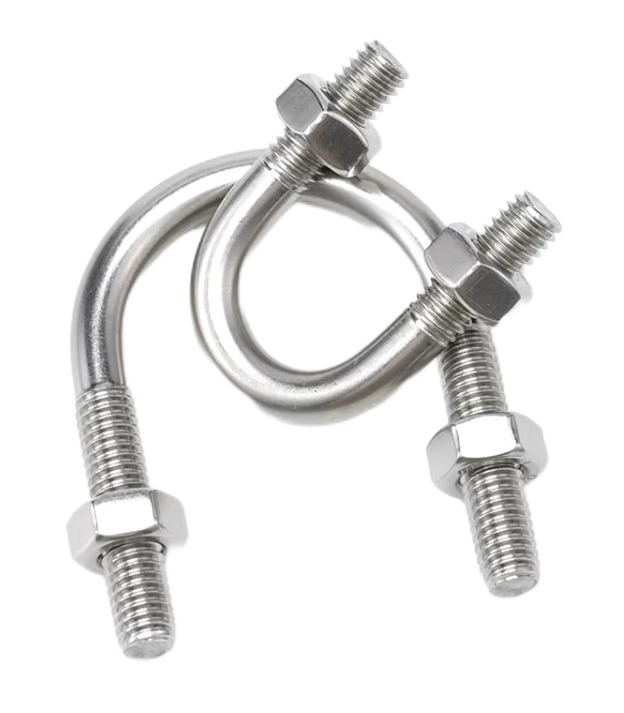

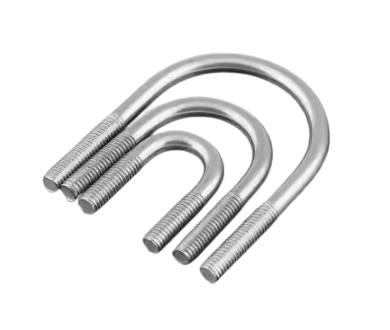

U-Bolt with Nuts

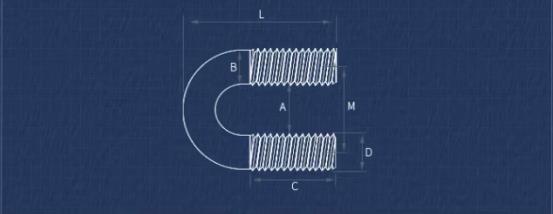

Specifications of U-Bolt with Nuts

M6 Series

Specification(mm)	A	B	C	D	M	L
M6*14	15	5.3	15	6	21	32
M6*16	17	5.3	15	6	23	34
M6*22	24	5.3	22	6	30	42
M6*27	29	5.3	25	6	35	47
M6*34	35	5.3	25	6	41	53
M6*42	44	5.3	28	6	50	62
M6*48	50	5.3	30	6	56	68
M6*51	53	5.3	30	6	59	71
M6*60	62	5.3	30	6	68	80
M6*76	78	5.3	35	6	84	96
M6*90	91	5.3	35	6	97	109
M6*114	116	5.3	35	6	122	134

M8 Series

Specification(mm)	A	B	C	D	M	L
M8*22	24	7.1	25	8	21	32
M8*27	29	7.1	28	8	23	34
M8*34	35	7.1	28	8	30	42
M8*42	44	7.1	30	8	35	47
M8*48	50	7.1	30	8	41	53
M8*51	53	7.1	30	8	50	62
M8*60	62	7.1	30	8	56	68
M8*76	78	7.1	30	8	59	71
M8*108	110	7.1	40	8	68	80
M8*114	116	7.1	40	6	84	96
M8*135	137	7.1	45	8	97	109
M8*161	163	7.1	50	6	122	134

M10 Series

Specification(mm)	A	B	C	D	M	L
M10*27	29	8.9	28	10	39	58
M10*34	35	8.9	28	10	45	64
M10*42	44	8.9	30	10	54	73
M10*48	50	8.9	35	10	60	82
M10*51	53	8.9	35	10	63	85
M10*60	62	8.9	35	10	72	94
M10*76	78	8.9	40	10	88	110
M10*90	94	8.9	40	10	101	123
M10*114	116	8.9	45	10	126	148
M10*135	138	8.9	45	10	145	167
M10*161	163	8.9	50	10	171	193
M10*220	222	8.9	55	10	231	263

M12 Series

Specification(mm)	A	B	C	D	M	L
M12*42	44	10.8	35	12	56	78
M12*48	50	10.8	35	12	62	84
M12*51	53	10.8	35	12	65	87
M12*60	62	10.8	35	12	74	96
M12*76	78	10.8	40	12	90	114
M12*90	92	10.8	40	12	103	127
M12*114	116	10.8	40	12	128	152
M12*135	137	10.8	40	12	147	171
M12*161	163	10.8	55	12	173	200
M12*220	222	10.8	55	12	233	260
M12*275	277	10.8	55	12	287	314
M12*328	330	10.8	55	12	339	366

Advantages of U-Bolt with Nuts

1. Good corrosion resistance, oxidation resistance, and heat resistance

2. High strength, high toughness, excellent quality.

Materials we can use on U-Bolt with Nuts
