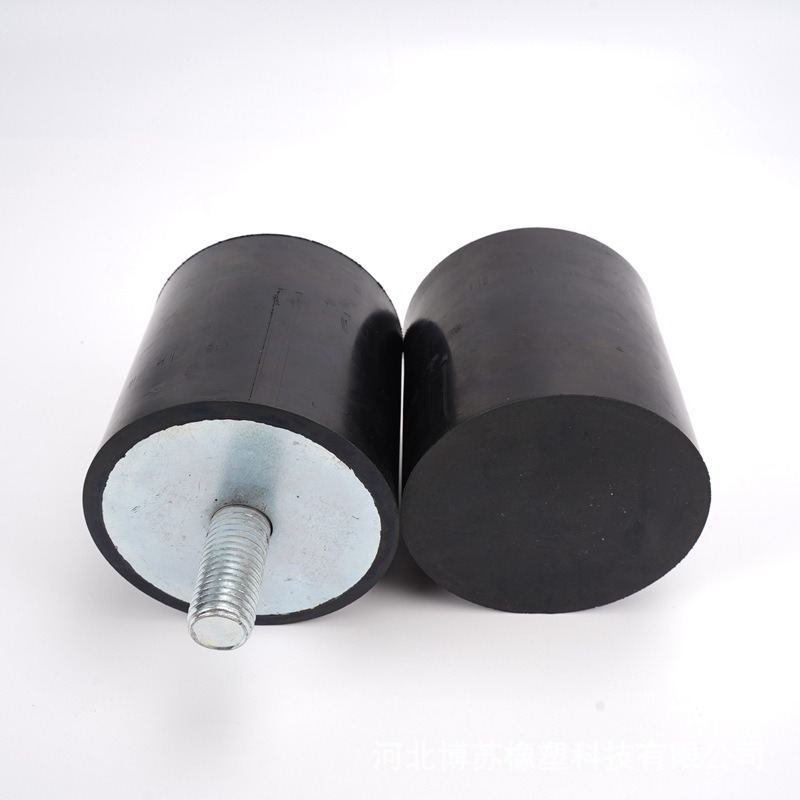

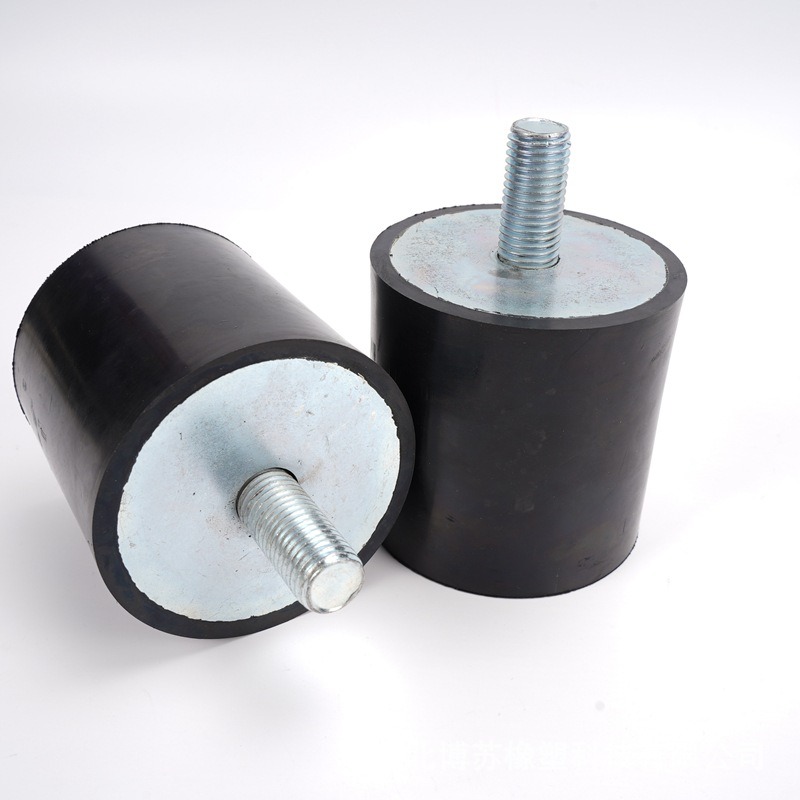

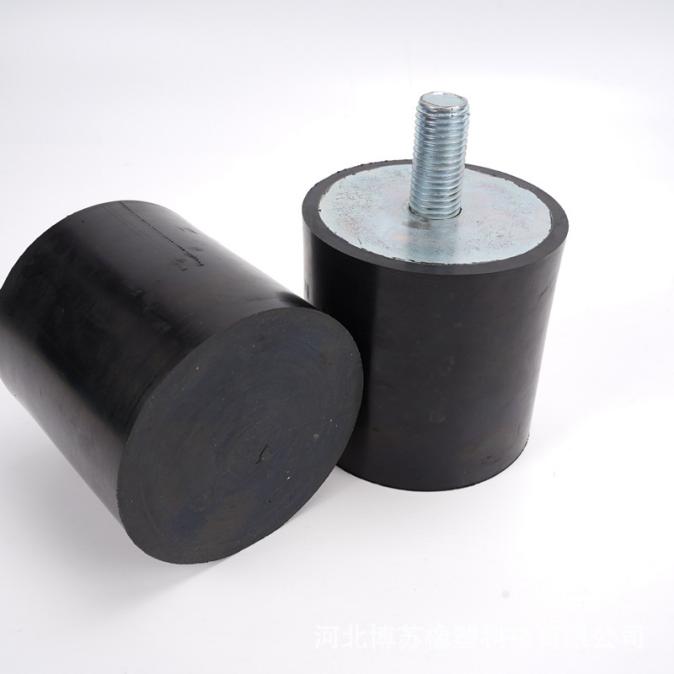

VE Rubber Shock Absorber
- Size: M3-M20
- Material: It is made of natural rubber, which has good elasticity, wear-resistance, and weather-resistance, and can maintain stable shock-absorbing performance in various environments. At the same time, it is equipped with metal bolts to ensure connection strength.
- Surface Treatment: The surface has an appearance of black rubber material. There is no obvious special decorative surface treatment for the rubber part, which mainly serves the shock-absorbing function. The metal bolt part may be treated with anti-rust treatment to enhance durability.
Specifications of VE Rubber Shock Absorber
| Size | A Rubber diameter mm | B Rubber Height mm | C Thread diameter mm | H Thread length mm |
| 8*8 M3 | 8 | 8 | M3 | 6/8 |
| 10*10 M3 | 10 | 10 | M3 | 6/8 |
| 10*8 M4 | 10 | 8 | M4 | 6/8/10 |
| 10*10 M4 | 10 | 10 | M4 | 10 |
| 10*15 M4 | 10 | 15 | M4 | 10 |
| 15*8 M4 | 15 | 8 | M4 | 10 |
| 15*10 M4 | 15 | 10 | M4 | 10 |
| 15*10 M5 | 15 | 10 | M5 | 12 |
| 15*15 M4 | 15 | 15 | M4 | 10 |
| 15*15 M5 | 15 | 15 | M5 | 12 |
| 15*20 M4 | 15 | 20 | M4 | 10 |
| 15*20 M5 | 15 | 20 | M5 | 15 |
| 15*30 M4 | 15 | 30 | M4 | 10 |
| 15*30 M5 | 15 | 30 | M5 | 12 |
| 20*10 M6 | 20 | 10 | M6 | 18 |
| 20*15 M6 | 20 | 15 | M6 | 18 |
| 20*20 M5 | 20 | 20 | M5 | 15 |
| 20*17 M6 | 20 | 17 | M6 | 16 |
| 20*20 M6 | 20 | 20 | M6 | 18 |
| 20*25 M6 | 20 | 25 | M6 | 18 |
| 20*30 M6 | 20 | 30 | M6 | 18 |
| 25*15 M6 | 25 | 15 | M6 | 18 |
| 25*20 M6 | 25 | 20 | M6 | 18 |
| 25*20 M8 | 25 | 20 | M8 | 20 |
| 25*25 M6 | 25 | 25 | M6 | 18 |
| 25*25 M8 | 25 | 25 | M8 | 20 |
| 25*30 M6 | 25 | 30 | M6 | 18 |
| 25*30 M8 | 25 | 30 | M8 | 20 |
| 30*15 M8 | 30 | 15 | M8 | 23 |
| 30*20 M8 | 30 | 20 | M8 | 23 |
| 30*25 M8 | 30 | 25 | M8 | 23 |
| 30*30 M8 | 30 | 30 | M8 | 23 |
| 30*40 M8 | 30 | 40 | M8 | 23 |
| 40*20 M8 | 40 | 20 | M8 | 23 |
| 40*20 M10 | 40 | 20 | M10 | 25 |
| 40*25 M8 | 40 | 25 | M8 | 23 |
| 40*25 M10 | 40 | 25 | M10 | 25 |
| 40*30 M8 | 40 | 30 | M8 | 23 |
| 40*30 M10 | 40 | 30 | M10 | 25 |
| 40*35 M10 | 40 | 35 | M10 | 25 |
| 40*40 M8 | 40 | 40 | M8 | 23 |
| 40*40 M10 | 40 | 40 | M10 | 25 |
| 50*20 M10 | 50 | 20 | M10 | 27 |
| 50*25 M10 | 50 | 25 | M10 | 27 |
| 50*30 M10 | 50 | 30 | M10 | 27 |
| 50*40 M10 | 50 | 40 | M10 | 27 |
| 50*50 M10 | 50 | 50 | M10 | 27 |
| 60*35 M10 | 60 | 35 | M10 | 32 |
| 60*35 M12 | 60 | 35 | M12 | 37 |
| 60*40 M12 | 60 | 40 | M12 | 37 |
| 60*50 M12 | 60 | 50 | M12 | 37 |
| 60*60 M12 | 60 | 60 | M12 | 37 |
| 70*50 M12 | 70 | 50 | M12 | 37 |
| 75*25 M12 | 75 | 25 | M12 | 37 |
| 75*40 M12 | 75 | 40 | M12 | 37 |
| 75*50 M12 | 75 | 50 | M12 | 37 |
| 75*50 M16 | 75 | 50 | M16 | 46 |
| 100*40 M16 | 100 | 40 | M16 | 46 |
| 100*50 M16 | 100 | 50 | M16 | 46 |
| 100*55 M16 | 100 | 55 | M16 | 46 |
| 100*60 M16 | 100 | 60 | M16 | 46 |
| 100*75 M16 | 100 | 75 | M16 | 46 |
| 150*50 M16 | 150 | 75 | M16 | 46 |
| 150*50 M20 | 150 | 75 | M20 | 46 |
| 150*75 M16 | 150 | 75 | M16 | 46 |
| 150*75 M20 | 150 | 75 | M20 | 46 |
Superior Features of VE Rubber Shock Absorber
- Excellent Shock-Absorbing Performance: Utilizing the elasticity of rubber, it can effectively absorb and buffer vibrations, reduce the transmission of equipment vibrations and noise, and enhance operational stability.
- Simple and Practical Structure: It is equipped with a bolt structure, which is convenient for installation and fixation, and can be quickly applied to various types of equipment.
Materials of VE Rubber Shock Absorber
Application Fields of VE Rubber Shock Absorber
- Machinery Manufacturing: Used in various machine tools, punch presses, etc. to reduce the impact of vibrations during operation on machining accuracy.
- Automotive Industry: Can be installed in parts such as automotive engines and chassis to reduce vibrations and noise during vehicle operation.
- Electronic Equipment: Protects precision electronic instruments from damage to internal components caused by vibrations.
