Wedge Anchor Bolts
Understanding Wedge Anchor Bolts
The wedge anchor bolts are a type of expansion bolts, also known as gecko expansion bolts or expansion anchor bolts.
Structure and Working Principle

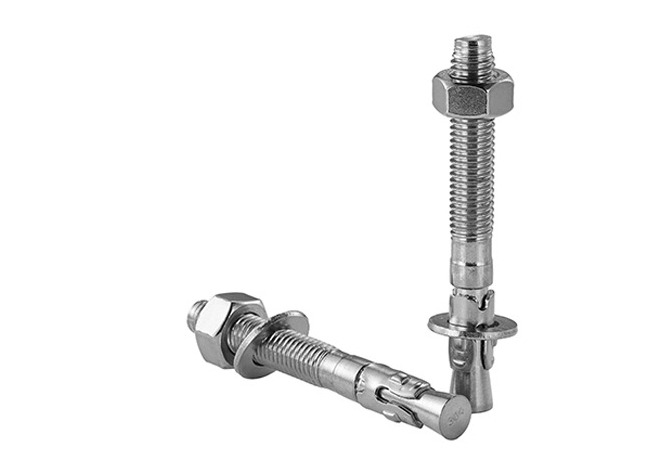

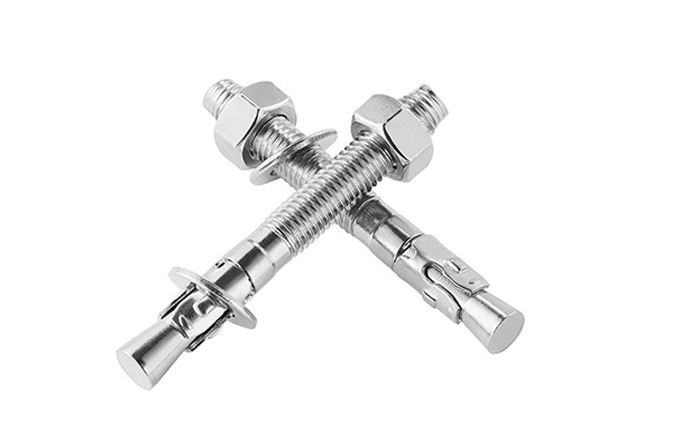

A wedge anchor bolt usually consists of a bolt, a nut, a washer and an outer sleeve. One end of the bolt is connected to the object to be installed, and the other end is connected to the nut. The outer sleeve is a hollow metal tube, which is sleeved on one side of the bolt. There are some grooves or cuts on the outer sleeve. During installation, the bolt is inserted into a pre-drilled hole, and then the nut is tightened. When the nut is tightened, the bolt exerts an outward force, causing the outer sleeve to expand, and its grooves or cuts are pressed into the hole, thus creating a stable connection. The nut on the bolt can be used to adjust the tightness of the connection.
Superior Characteristics of Wedge Anchor Bolts
- Wide application range: It is suitable for various solid surfaces, such as concrete, brick walls, dense natural stone, metal structures, metal profiles, etc.
- Easy installation: No special tools are required. It has low requirements for the depth and cleanliness of the concrete hole, and the drilling diameter is small. During installation, just insert it into the pre-drilled hole and tighten the nut.
- Adjustable tightness: By rotating the nut, the tightness of the connection can be adjusted according to actual needs, which is suitable for different application scenarios.
- Strong load-bearing capacity: It has high tensile and torque-bearing capacities, providing strong fixing force, being able to bear large loads, and ensuring the firmness and safety of the installation.
- Diverse materials: There are materials such as stainless steel, carbon steel and other metal materials, which can meet the needs of different environments and projects. For example, stainless – steel materials are suitable for dry indoor and outdoor environments.
Materials we can use on Wedge Anchor Bolts
Applications of Wedge Anchor Bolts
Wedge anchor bolts are commonly used in construction and structural engineering. It can be used for installing brackets, guardrails, pipe supports, ceiling hooks, electrical equipment, curtain walls, cantilever brackets, escalators, cable trays, stairs, doors and windows, etc.
