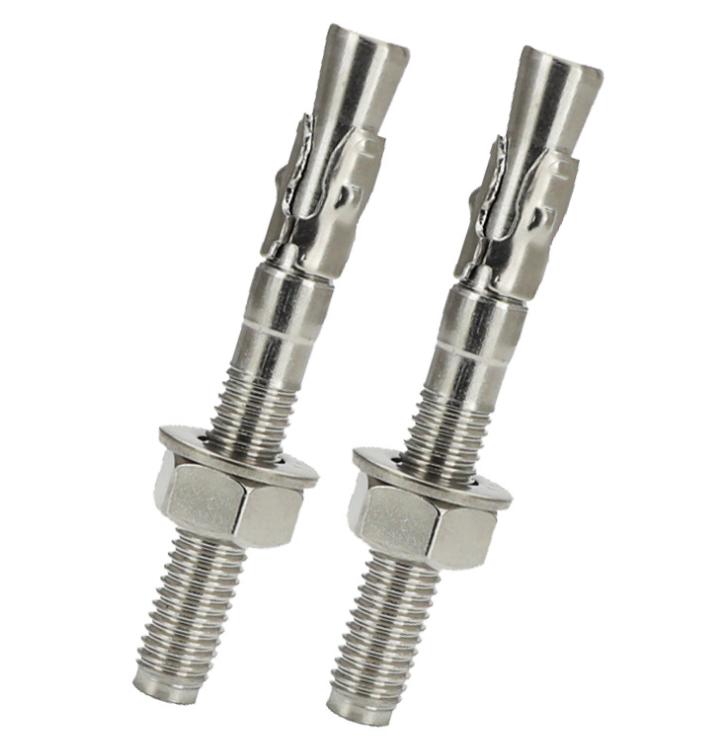

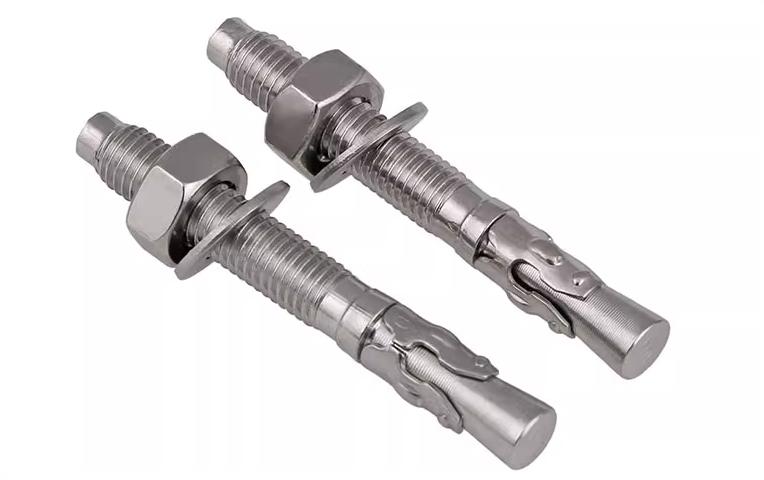

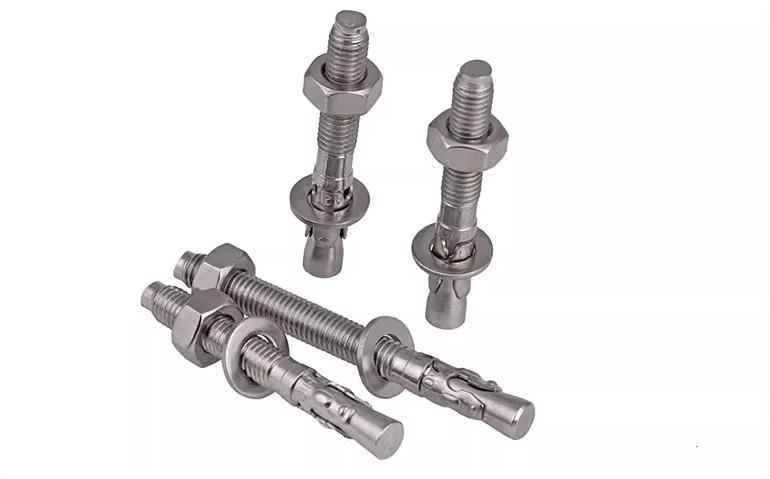

Wedge Anchors
Specifications of Wedge Anchors
| Size | Length(L) | Screw diameter(D) | Size of flat washers(s) | Diameter of hexagonal opposite sides (M) | Drill bit |
| M6*50 | 50 | 6 | M6*12*1.6 | 10 | 6 |
| M6*60 | 60 | 6 | M6*12*1.6 | 10 | 6 |
| M6*75 | 75 | 6 | M6*12*1.6 | 10 | 6 |
| M6*100 | 100 | 6 | M6*12*1.6 | 10 | 6 |
| M8*60 | 60 | 8 | M8*16*1.6 | 13 | 8 |
| M8*70 | 70 | 8 | M8*16*1.6 | 13 | 8 |
| M8*75 | 75 | 8 | M8*16*1.6 | 13 | 8 |
| M8*80 | 80 | 8 | M8*16*1.6 | 13 | 8 |
| M8*90 | 90 | 8 | M8*16*1.6 | 13 | 8 |
| M8*100 | 100 | 8 | M8*16*1.6 | 13 | 8 |
| M8*115 | 115 | 8 | M8*16*1.6 | 13 | 8 |
| M10*70 | 70 | 10 | M10*20*2 | 17 | 10 |
| M10*75 | 75 | 10 | M10*20*2 | 17 | 10 |
| M10*80 | 80 | 10 | M10*20*2 | 17 | 10 |
| M10*90 | 90 | 10 | M10*20*2 | 17 | 10 |
| M10*100 | 100 | 10 | M10*20*2 | 17 | 10 |
| M10*120 | 120 | 10 | M10*20*2 | 17 | 10 |
| M12*75 | 75 | 12 | M12*24*2.5 | 19 | 12 |
| M12*100 | 100 | 12 | M12*24*2.5 | 19 | 12 |
| M12*110 | 110 | 12 | M12*24*2.5 | 19 | 12 |
| M12*115 | 115 | 12 | M12*24*2.5 | 19 | 12 |
| M12*120 | 120 | 12 | M12*24*2.5 | 19 | 12 |
| M12*140 | 140 | 12 | M12*24*2.5 | 19 | 12 |
| M12*150 | 150 | 12 | M12*24*2.5 | 19 | 12 |
| M16*100 | 100 | 16 | M16*30*3 | 24 | 16 |
| M16*120 | 120 | 16 | M16*30*3 | 24 | 16 |
| M16*140 | 140 | 16 | M16*30*3 | 24 | 16 |
| M16*150 | 150 | 16 | M16*30*3 | 24 | 16 |
Superior Characteristics of Wedge Anchors
- Overall smooth, the product is smooth without burrs, the workmanship is rigorous, and it is sturdy and durable.
- Standard combination, paired with standard nuts, flat pads, for a more sturdy and secure use.
Why Choose KENENG as A Professional Manufacturer of Wedge Anchors
1. KENENG has many years of experience in high-precision hardware CNC lathe machining.
2. We will use high-precision measuring tools and advanced testing equipment to inspect all parts and processes from incoming materials to final inspection. Keneng ensures that only qualified products are delivered to customers. Quality control is the top priority, and every step of the process is carefully controlled. Strict testing of products is carried out to ensure product quality
3. Competitive pricing: We have stable raw material suppliers who can quickly provide customers with competitive quotes.Mature technology and rich experience in surface strengthening treatment, strong pressure treatment, elimination of internal stress during use, making elasticity more stable.
4. Engineering support: No matter how many parts customers require, we have a professional team of engineers to provide technical support.
We accept customized services:
1. Provide us with parameters
1)Dimension Requirements: :diameter, length.
2) Surface treatment requirements (zinc plating, tin plating, nickel plating, etc.)
3)Other requirements.
2. You can also send us the sample or drawing and we will study it.
