What are Anti-vibration Washers: 4 Key Points You Need to Know

Anti-vibration washers are specialized components designed to mitigate these issues by absorbing, dampening, or isolating vibrations. In this article, we delves into the functions, types, applications, and benefits of anti-vibration washers, as well as best practices for their use.

How do Anti-vibration Washers Work

1. Vibration Absorption

Anti-vibration washers are made from materials with elastic and damping properties, such as rubber, polyurethane, or specialized composites. When vibrations occur, the washer compresses and flexes, absorbing the kinetic energy and reducing the vibration’s intensity.

Example: In automotive engines, rubber-based washers absorb the vibrations caused by moving parts, preventing these forces from loosening bolts and screws.

2. Energy Dissipation

As the washer absorbs vibration, it converts mechanical energy into a small amount of heat through internal friction. This process disperses the vibration energy and reduces the risk of mechanical wear and tear.

Example: In industrial machinery, polyurethane washers dissipate vibration energy, protecting sensitive components from damage.

3. Shock Isolation

Anti-vibration washers act as a buffer between fastened surfaces. They isolate shocks caused by sudden impacts, reducing the force transmitted through the mechanical assembly.

Example: In aerospace applications, spring-based anti-vibration washers isolate sensitive instruments from shocks during takeoff and landing.

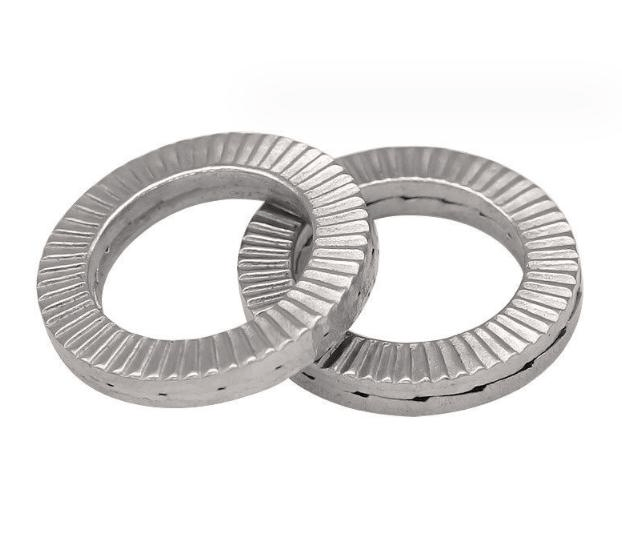

4. Secure Fastening

By maintaining consistent pressure and grip, these washers prevent the loosening of bolts and screws caused by continuous movement or vibration. Their elasticity helps them return to their original shape, maintaining the integrity of the connection.

Example: In heavy machinery, metal-bonded washers ensure that fasteners remain secure under extreme vibration conditions.

5. Noise Reduction

By minimizing the transmission of vibrations, anti-vibration washers reduce the noise produced by vibrating parts. This is especially useful in environments where operational noise must be controlled.

Example: In household appliances, rubber washers in washing machines reduce noise from spinning and agitation cycles.

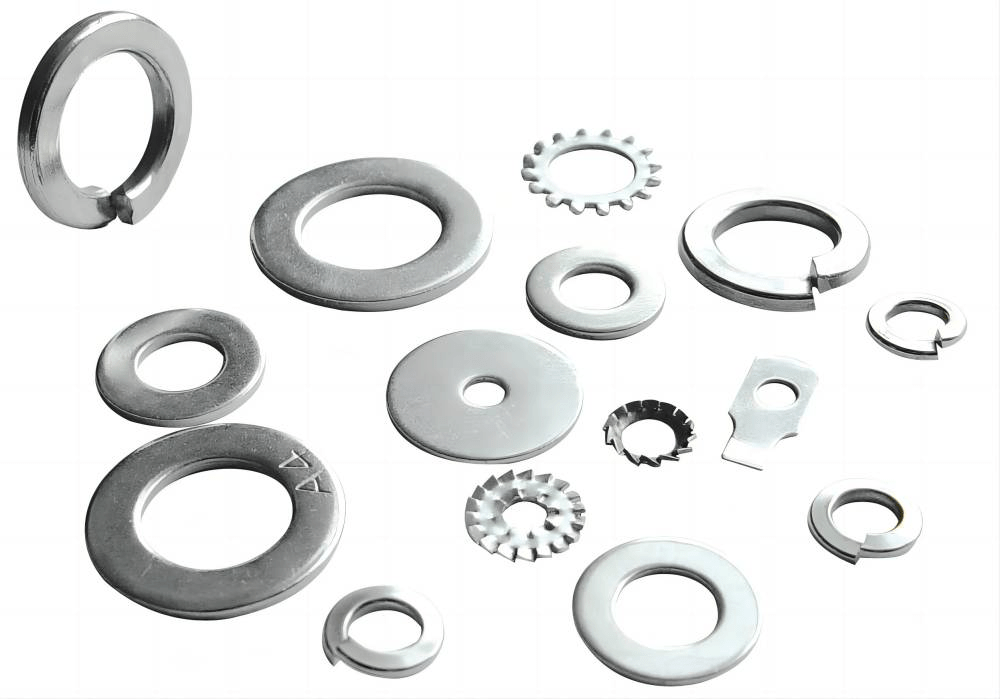

Types of Anti-vibration Washers

Type	Material	Features	Applications

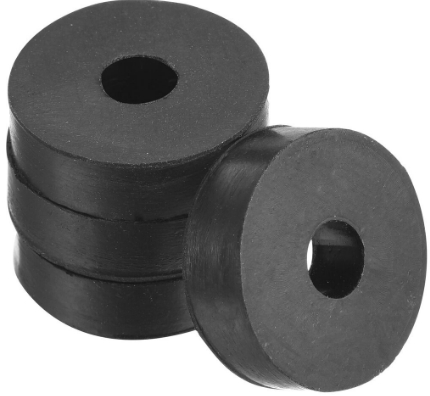

Rubber Anti-vibration Washers	Natural Rubber, Silicone, Neoprene	Excellent shock absorption, flexible	Electronics, automotive, HVAC systems
Metal Bonded Washers	Steel, Stainless Steel + Rubber Coating	High durability with vibration isolation	Heavy machinery, industrial equipment
Polyurethane Washers	Polyurethane	Chemical-resistant, durable	Hydraulic systems, oil and gas applications

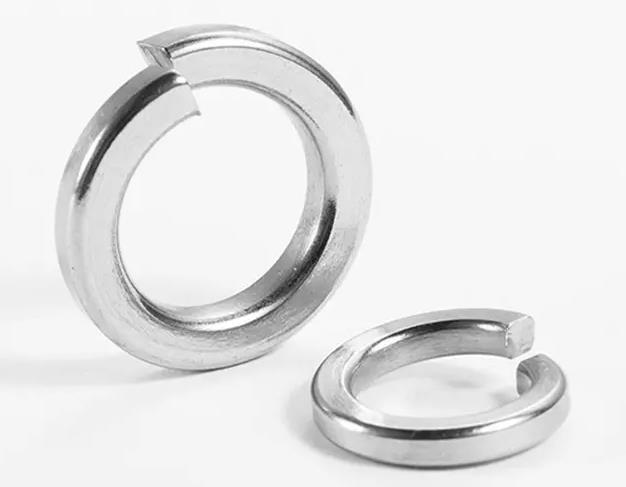

Spring Washers	Stainless Steel, Carbon Steel	Absorbs shock through spring action	Aerospace, marine environments, automotive
Cork and Rubber Washers	Cork-Rubber Composite	Lightweight, excellent noise damping	Precision instruments, electrical devices
Plastic Anti-vibration Washers	Nylon, PTFE	Lightweight, corrosion-resistant	Electronic devices, light mechanical systems

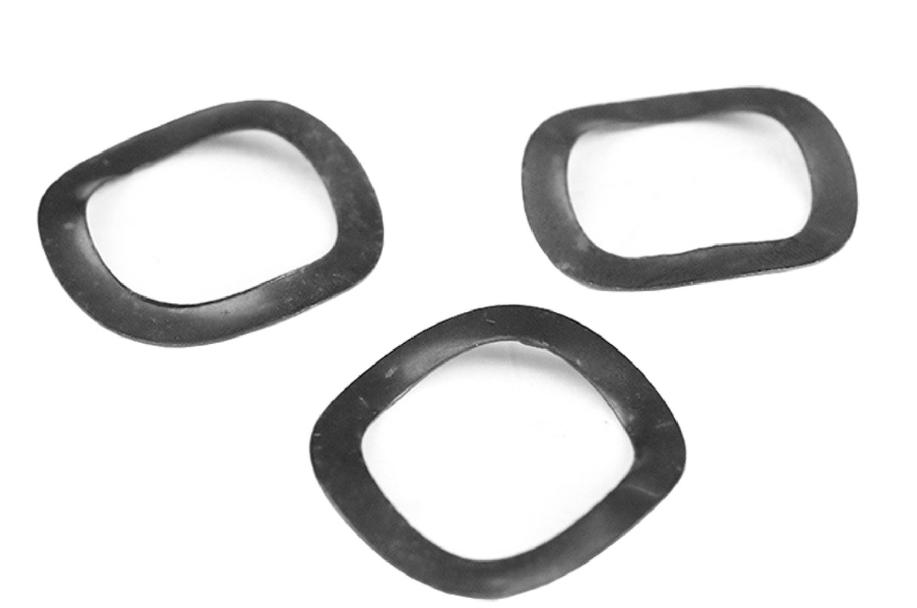

Wave Washers	Carbon Steel, Stainless Steel	Provides continuous tension and cushioning	Bearings, small mechanical assemblies

Key Factors to Consider for Choosing the Right Anti-vibration Washer

1. Application Requirements

Different industries and machinery have unique vibration characteristics, and the washer must be tailored to handle the specific intensity and frequency of vibrations. For instance, heavy industrial equipment may require robust washers capable of withstanding high loads and constant vibrations, while smaller appliances might need lighter, more flexible options.

2. Material Composition

The material of the anti-vibration washer directly affects its ability to absorb and dampen vibrations. Common materials include:

Rubber: Ideal for general-purpose applications but may degrade in harsh environments.
Neoprene: Resistant to oil, chemicals, and weathering, making it suitable for industrial or outdoor use.
Polyurethane: Offers high load-bearing capacity and abrasion resistance, perfect for heavy-duty applications.
Nylon: Lightweight and corrosion-resistant, suitable for low-vibration and electrical insulation applications.

3. Material Composition

Ensure the washer fits the specific fasteners and components. Verify inner and outer diameters, thickness, and shape to ensure proper alignment and secure fastening without over-compression.

Inner Diameter (ID): The washer must fit snugly around the fastener (bolt, screw, or stud).
Outer Diameter (OD): The washer should cover enough surface area to effectively distribute the load and dampen vibrations.
Thickness: Thicker washers provide better vibration absorption but may not be suitable for tight spaces.

4. Material Composition

Consider the washer’s ability to withstand mechanical loads without losing shape or functionality. Higher load environments, such as heavy machinery, require washers designed to handle significant stress without deformation.

5. Vibration Frequency

Different washers are designed to handle specific vibration frequencies. Low-frequency washers are suitable for slow-moving machinery, while high-frequency washers are better for fast-moving components like automotive engines.

6. Environmental Conditions

Evaluate the operating environment to ensure the washer can withstand external factors, including:

Temperature: Choose materials with appropriate thermal resistance for extreme hot or cold conditions.
Chemical Exposure: Select washers resistant to oils, solvents, and other corrosive substances.
Moisture and UV Radiation: Ensure the material is suitable for outdoor or humid environments to prevent degradation.

7. Washer Design and Shape

The washer’s design influences how it fits and functions. Common designs include:

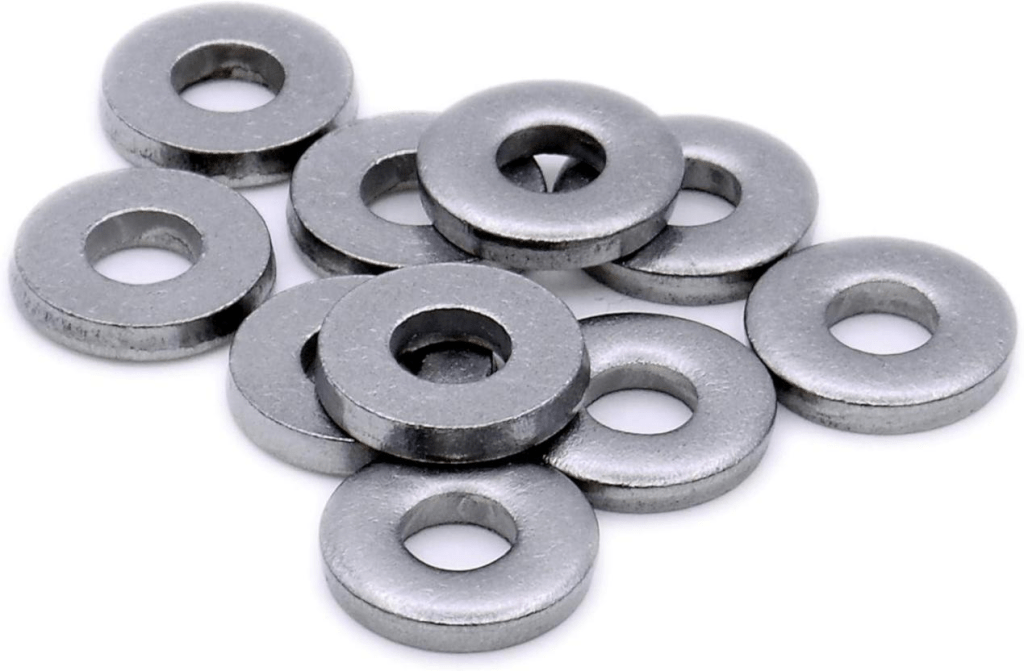

Flat Washers: General-purpose, offering basic vibration absorption.
Conical or Dome-Shaped: Better for absorbing multi-directional vibrations.
Split or Wave Washers: Provide extra elasticity for high-flex applications.

8. Durability and Lifespan

Wear Resistance: Choose materials that resist abrasion and wear, especially in high-friction applications.
UV and Weather Resistance: For outdoor applications, select materials that won’t degrade from sunlight or weather exposure.
Longevity: Consider the expected lifespan of the washer and how often it may need replacement.

9. Industry Standards and Certifications

Industry Standards: Check if the washer meets industry-specific standards or certifications (e.g., ISO, ASTM, or automotive standards).
Safety Regulations: Ensure the washer complies with safety and environmental regulations, especially in critical applications like aerospace or medical equipment.

10. Cost and Availability

While high-performance materials may come at a higher price, they often provide better longevity and reliability, reducing long-term maintenance and replacement costs. Additionally, ensuring that the chosen washer is readily available for replacement or bulk purchasing can save time and effort in the future.

Best Practices for Using Anti-Vibration Washers

This chart provides a summary of the key best practices for effectively using anti-vibration washers in various applications.

Best Practice	Description
1. Choose the Right Material	Select the washer material based on the application, such as rubber or metal.
2. Correct Sizing	Ensure the washer is the right size for the bolt or fastener to prevent movement.
3. Ensure Proper Installation	Install the washer correctly, with the anti-vibration side facing the vibration source.
4. Tighten to Proper Torque	Avoid overtightening or under-tightening to ensure effective vibration dampening.
5. Regular Inspection	Periodically inspect for wear or deformation, especially in high-vibration environments.
6. Consider Environmental Factors	Choose washers that are resistant to temperature extremes, chemicals, and moisture.
7. Avoid Overloading	Ensure the washer’s load capacity is not exceeded to maintain vibration protection.

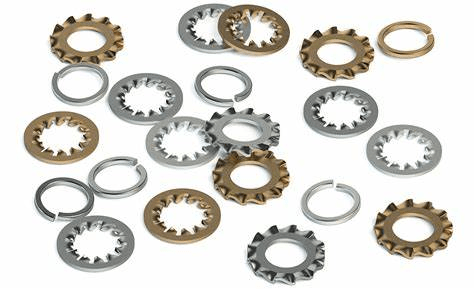

8. Combine with Other Fasteners	Pair with other fasteners like lock washers to enhance overall system security.

To sum up, anti-vibration washers are crucial in maintaining stability, reducing noise, and enhancing the longevity of mechanical systems. Through choosing the right type of washer, industries can improve equipment reliability and prevent failures caused by excessive vibration.
