What are Bolt Standards: 4 Key Points You Need to Know

The ability of bolts to securely join components relies on precise manufacturing, material quality, and adherence to recognized standards. Bolt standards ensure consistency, safety, and interchangeability, allowing for reliable performance in diverse applications. This article explores the key bolt standards, their significance, and their global application.

The Importance of Bolt Standards

Bolt standards define the specifications, dimensions, material properties, and performance requirements for bolts. They are designed to ensure:

• Uniformity: Bolts from different manufacturers can be used interchangeably.
• Quality: Ensures bolts can withstand the specified mechanical loads and environmental conditions.
• Safety: Reduces the risk of structural failures due to substandard bolts.

Major Bolt Standards and Their Features

1. ISO Standards (International Organization for Standardization)

ISO standards are widely recognized globally and provide a unified approach to bolt specifications.

ISO 898

• Defines mechanical properties of bolts made from carbon and alloy steel.
• Specifies property classes (e.g., 8.8, 10.9) based on tensile strength and yield ratio.
• Applicable to structural, automotive, and general engineering applications.

ISO 3506

• Covers corrosion-resistant stainless steel bolts.
• Grades such as A2 and A4 classify resistance levels, with A4 suitable for marine environments.

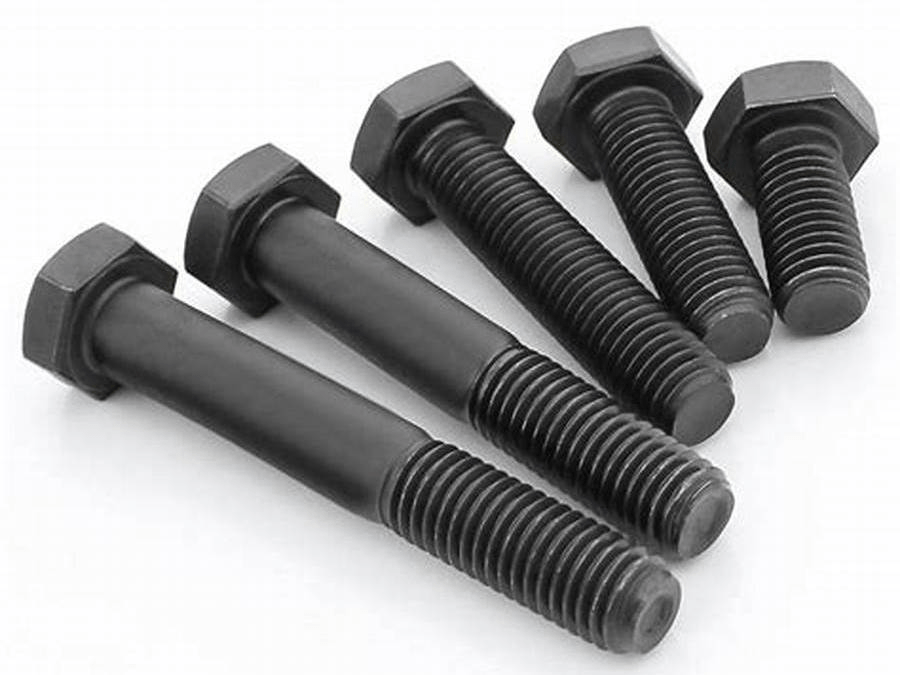

ISO 4014 and ISO 4017

• Define dimensions for hex bolts.
• ISO 4014: Partially threaded bolts.
• ISO 4017: Fully threaded bolts.

2. ANSI/ASME Standards (American National Standards Institute/American Society of Mechanical Engineers)

These standards are prevalent in North America and emphasize dimensional precision and threading.

ASME B18.2.1

• Specifies dimensions for hex bolts, square bolts, and other bolt types.
• Includes head dimensions, thread lengths, and tolerances.

ASME B1.1

• Defines threading systems, including:
• Unified National Coarse (UNC): Suitable for general-purpose use.
• Unified National Fine (UNF): Provides better thread engagement for precision applications.

ANSI B18.3

• Covers socket head cap screws and similar bolts used in high-strength and compact applications.

3. DIN Standards (Deutsches Institut für Normung)

DIN standards originated in Germany and are widely used in Europe, with many adopted globally.

DIN 931

• Defines hex head bolts with partial threading.
• Common in construction and mechanical applications.

DIN 933

• Specifies hex head bolts with full threading.
• Used where extended threading is required for secure fastening.

DIN 912

• Covers socket head cap screws.
• Preferred for compact and recessed applications.

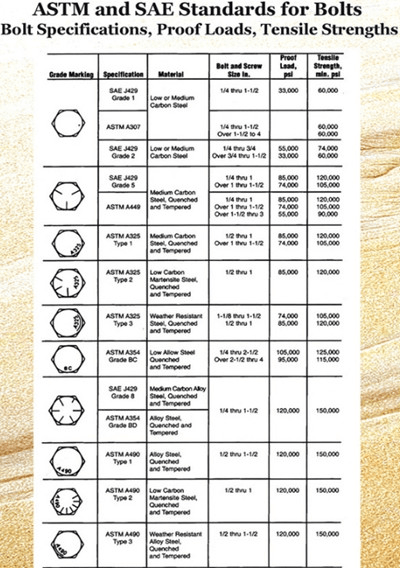

4. ASTM Standards (American Society for Testing and Materials

ASTM standards focus on material properties and performance under specific conditions.

ASTM A325

• High-strength structural bolts used in steel construction.
• Features specific load and strength requirements for large-scale structural applications.

ASTM A490

• Heavy-duty structural bolts with higher tensile strength than A325.
• Ideal for high-stress environments.

ASTM A193

• Bolts designed for high-temperature and high-pressure applications, such as in power plants and refineries.
• Covers alloy and stainless steel grades.

5. SAE Standards (Society of Automotive Engineers)

SAE standards are tailored for the automotive and aerospace industries.

SAE J429

• Specifies mechanical properties for hex bolts and screws.
• Includes various grades for automotive use.

SAE AS8879

• Standard for aerospace fasteners, focusing on high-performance threading and precision.

6. BS Standards (British Standards)

British Standards Institution (BSI) provides bolt standards widely used in the UK.

BS 4190

• Covers general-purpose hexagon bolts and screws.
• Specifies dimensions and mechanical properties.

BS EN 14399

• Standard for high-strength structural bolting assemblies for preloading.

Comparison of Key Features

Standard	Region	Key Features	Applications
ISO	Global	Mechanical properties, corrosion resistance, dimensions	Structural, automotive, and general engineering
ANSI/ASME	North America	Dimensional precision, threading systems	Construction, machinery, and general use
DIN	Europe/Global	Hex bolts, socket screws, threading	Industrial and construction
ASTM	Global	Material performance, high-strength bolts	Structural steel, high-pressure environments
SAE	Automotive/Aerospace	Automotive-grade bolts, high-precision fasteners	Vehicles, aerospace

Material and Performance Specifications of Bolt Standards

Bolt standards establish precise requirements for materials, mechanical properties, and performance characteristics. These specifications vary depending on the application, environmental conditions, and load requirements.

1. Material Specifications

a. Carbon Steel

• Common Grades: 4.6, 5.8, 8.8, 10.9, 12.9 (based on ISO 898).
• Applications: General-purpose fasteners, construction, and machinery.

Characteristics:

• Lower grades (e.g., 4.6) are used for non-critical applications.
• Higher grades (e.g., 10.9, 12.9) are used for high-strength applications.

b. Alloy Steel

• Common Standards: ASTM A193 (e.g., Grade B7 for high-temperature applications).
• Applications: Power plants, oil and gas pipelines, and heavy machinery.

Characteristics:

• Enhanced tensile strength and resistance to fatigue.
• Performs well in high-temperature environments.

c. Stainless Steel

• Common Grades: A2, A4 (ISO 3506).
• Applications: Marine, chemical processing, and outdoor environments.

Characteristics:

• Corrosion resistance (A4 has superior resistance to chlorides).
• Suitable for extreme environments and exposure to moisture.

d. Non-Ferrous Metals

• Materials: Aluminum, titanium, brass, and copper alloys.
• Applications: Aerospace, electronics, and decorative purposes.

Characteristics:

• Lightweight and corrosion-resistant.
• Used in applications requiring non-magnetic properties.

2. Mechanical Properties

Bolt standards define mechanical properties to ensure performance under load. Key properties include:

a. Tensile Strength

Definition: Maximum stress a bolt can withstand while being stretched or pulled before breaking.

Examples:

• ISO Grade 8.8 bolts: Minimum tensile strength of 800 MPa.
• ASTM A490 bolts: Minimum tensile strength of 1040 MPa.

b. Yield Strength

Definition: Stress level at which a bolt begins to deform permanently.

Examples:

• ISO Grade 10.9 bolts: Yield strength typically 90% of tensile strength.
• Critical in structural applications where elastic deformation is essential.

c. Hardness

Definition: Resistance of a bolt material to deformation, typically measured in Brinell (HB) or Rockwell (HRC).

Examples:

• High-strength bolts like ASTM A193 Grade B7 require a minimum hardness for elevated-temperature applications.

d. Elongation

Definition: Measure of a bolt’s ability to stretch under load before breaking.

Examples:

• Standards like ISO 898 specify minimum elongation percentages to ensure ductility.

e. Fatigue Resistance

• Definition: Ability to withstand cyclic loading without failure.
• Applications: Rotating machinery, automotive engines.
• Standards: ASTM standards include fatigue resistance tests for high-performance bolts.

3. Threading Specifications

Bolt threads play a critical role in load distribution and fastening performance.

a. Thread Types

• Coarse Threads: Common in general-purpose bolts (e.g., UNC threads under ASME B1.1).
• Fine Threads: Provide better load distribution and are used in precision applications.

b. Thread Fit

• Classes of Fit: Specified in standards like ISO 965 and ASME B1.1 (e.g., 6g for bolts).
• Importance: Ensures proper engagement and prevents loosening under dynamic loads.

4. Surface Treatments and Coatings

Surface treatments enhance the durability and performance of bolts, particularly in harsh environments.

a. Zinc Plating

• Features: Provides basic corrosion resistance.
• Applications: General-purpose bolts in mild environments.

b. Hot-Dip Galvanizing

• Features: Thicker zinc coating for superior corrosion resistance.
• Applications: Outdoor structures and marine applications.

c. Black Oxide

• Features: Improves aesthetic appearance and offers mild corrosion resistance.
• Applications: Indoor applications and low-corrosion environments.

d. PTFE and Other Polymer Coatings

• Features: Enhances lubrication and corrosion resistance.
• Applications: Chemical processing and extreme environments.

5. Environmental and Specialized Performance

a. Corrosion Resistance

• Stainless Steel: Ideal for corrosive environments (e.g., A4 bolts in marine applications).
• Coatings: Standards like ASTM F2329 ensure corrosion resistance for galvanized bolts

b. High-Temperature Performance

• Materials: Alloy steel bolts (e.g., ASTM A193) maintain strength and stability at elevated temperatures.
• Applications: Power plants, furnaces, and turbines.

c. Cryogenic Performance

• Materials: Stainless steel and certain alloy bolts retain ductility at low temperatures.
• Applications: Aerospace, refrigeration, and LNG storage.

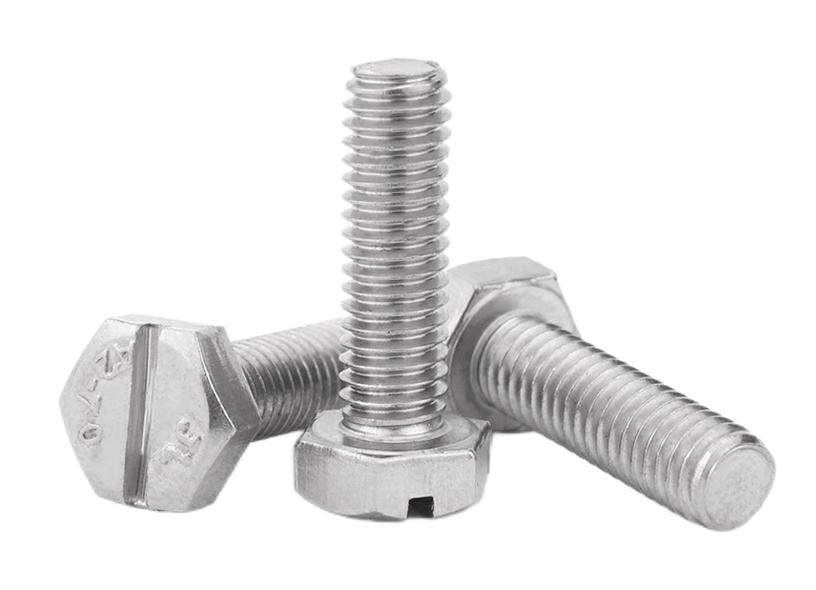

6. Markings for Material and Performance

Bolt standards require markings to identify material properties and compliance with standards:

• Property Class: Indicates tensile strength and yield strength (e.g., 8.8, 10.9 for ISO bolts).
• Manufacturer’s Mark: Ensures traceability.
• Grade Identification: Material type and corrosion resistance (e.g., A2-70 for stainless steel bolts).

Challenges in Bolt Standardization

This chart captures the broad challenges, their implications, and the areas where efforts are needed to streamline bolt standardization.

Category	Challenges	Impact
Global Variations	– Different standards across regions (ISO, ASTM, DIN, JIS).	– Incompatibility in international projects and supply chains.
	– Lack of universal adoption of a single standard.	– Increased need for converters or adapters.
Material Diversity	– Variations in material grades and classifications.	– Miscommunication between suppliers and end-users.
	– Difficulty in ensuring consistent quality for unique applications.	– Limits interchangeability across industries.
Performance Specifications	– Varying tensile, yield strength, and hardness requirements in standards.	– Confusion in selecting bolts for multi-standard compliance.
	– Inconsistent test methods for mechanical properties.	– Reduced reliability and potential for product failure.
Threading and Fit	– Differences in thread types (coarse, fine) and fit classes across standards.	– Assembly issues and potential loosening under load.
	– Non-interchangeable threads leading to stock management issues.	– Delayed construction timelines and cost overruns.
Environmental Conditions	– Limited specification for extreme environments (high temperatures, corrosion).	– Inadequate protection or durability in specific applications.
Marking and Identification	– Variability in required bolt markings (grade, manufacturer).	– Difficulty in traceability and quality verification.
	– Inconsistent practices in counterfeit prevention.	– Increased risk of using substandard or fake bolts.
Regulatory Overlap	– Different industries enforcing their own specific standards.	– Complexity in compliance for manufacturers serving multiple sectors.
Cost Implications	– Higher costs for testing, certification, and multiple-standard compliance.	– Increased project expenses and reduced competitiveness for manufacturers.
Emerging Technologies	– Delayed updates to standards for advanced materials and manufacturing techniques (e.g., 3D printing).	– Incompatibility with innovative solutions and limited adoption of new technologies.

To sum up, Bolt standards are critical for reliable engineering, ensuring safety, consistency, and compatibility. Through adhering to recognized standards, manufacturers and engineers can guarantee the performance and reliability of bolts in critical structures and systems.
