What are Main Types of Hex Screws: How to Choose the Right Type

Hex screws are versatile fasteners widely used in various industries. However, not all hex screws are created equal. Depending on the requirements of a project, such as it applied for structural stability, corrosion resistance, or aesthetics and different types of hex screws are utilized. This article delves into the various types of hex screws, their features, and their applications.

What are Hex Screws

Hex screws are characterized by a hexagonal head, compatible with standard tools like wrenches and sockets. They come in various sizes, materials, and finishes, used in different industries such as construction, automotive, machinery, electronics, etc. Hex screws are prized for their strength, durability, and ease of installation, making them essential in assembling and securing components in a wide range of industries.

Key Characteristics

Six-Sided Head Design: The hexagonal head provides multiple gripping points for tools, ensuring effective torque application during installation or removal.
Threading: hexagonal screws come in fully or partially threaded varieties. Fully threaded screws offer stronger holding power, while partially threaded screws provide added shear strength.
Variety of Sizes: Hex screws are available in a wide range of sizes and thread types to accommodate various applications, from light-duty assembly to heavy industrial use.
Materials: Hexagonal head screws are commonly made from materials such as stainless steel, carbon steel, alloy steel, and titanium, offering different levels of strength, corrosion resistance, and weight.
Surface Finishes: Protective coatings, including zinc plating, galvanization, and black oxide, enhance resistance to rust and corrosion, making hex screws suitable for outdoor and marine environments.

Main Types of Hex Screws

1. Hex Cap Screws

Hex cap screws are precision-manufactured with tight tolerances and are commonly used in construction, machinery, and automotive applications. They are designed for use in pre-threaded holes and can achieve a firm connection without requiring a nut.

Key Features:

Fully or partially threaded shank.
Chamfered edges on the head for smooth assembly.
Often made from stainless steel, carbon steel, or brass.

Applications:

Machinery assembly.
Automotive parts like engines and gearboxes.
Structural construction.

Material Options:

Steel, stainless steel, brass, and alloy steel.

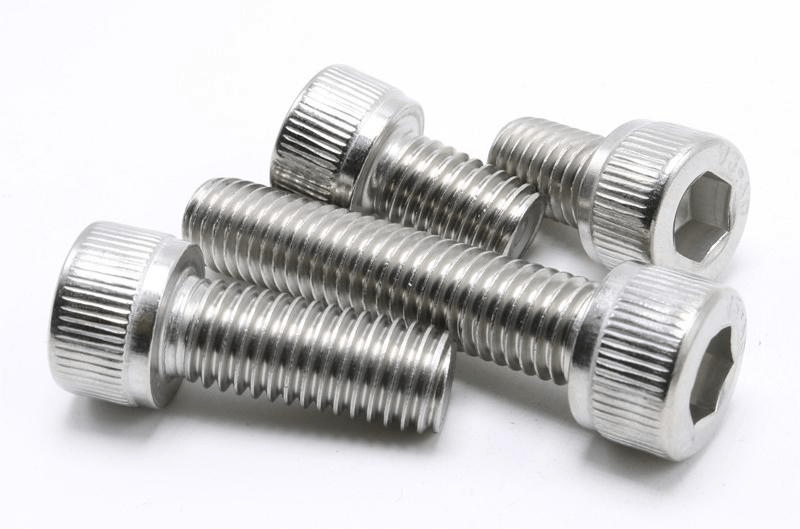

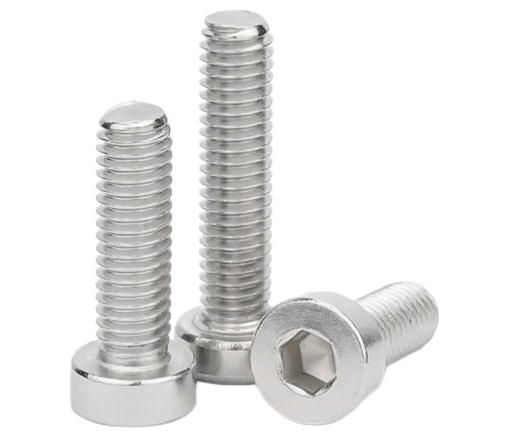

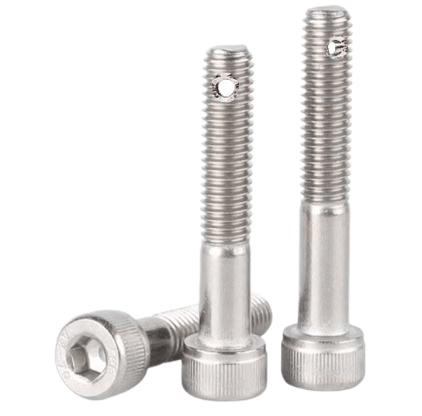

2. Hex Socket Head Cap Screws

Hexagon socket head cap screws feature a cylindrical head with an internal hex drive. These screws are popular for applications requiring a clean, flush appearance and easy assembly in tight spaces.

Key Features:

Internal hex drive for compatibility with Allen wrenches.
High strength-to-size ratio.
Available in various materials like stainless steel and titanium.

Applications:

Electronics and robotics.
Aerospace components.
High-performance bicycles and motorcycles.

Material Options:

Stainless steel, titanium, and black oxide-coated steel.

3. Hex Set Screws (Hex Grub Screws)

Hexagon socket set screws, also known as hex grub screws, lack a traditional head and are fully threaded. These screws are primarily used to secure one component inside or against another, such as fastening a pulley to a shaft.

Key Features:

No external head; designed for flush or recessed installation.
Often have a flat, cup, or cone point.

Applications:

Securing knobs, gears, or collars on shafts.
Precision engineering applications.
Medical devices.

Material Options:

Alloy steel, stainless steel, and titanium.

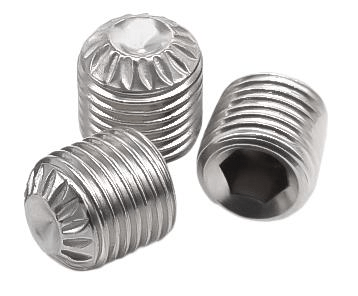

Knurled Hexagon Socket Set Screws with Cup Point

4. Flange Hex Screws

Flange hex screws come with a built-in washer-like flange at the base of the head, which distributes the load over a larger area. This eliminates the need for a separate washer in many cases.

Key Features:

Larger bearing surface reduces damage to the material.
Available in serrated or non-serrated designs for better grip.

Applications:

Automotive assembly (e.g., fastening engine covers).
Industrial machinery.
Steel structures.

Material Options:

Stainless steel, alloy steel, and coated steel.

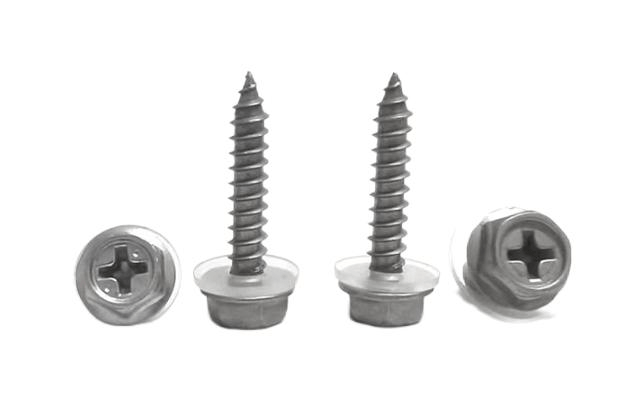

cross hexagon flange self-tapping screws

5. Self-Tapping Hex Screws

Self-tapping hexagon screws are specifically designed to create their own threads as they are driven into materials like wood, plastic, or thin metal sheets.

Key Features:

Sharp, pointed tip for easy penetration.
Available with coarse or fine threads depending on the material.

Applications:

HVAC installations.
Electrical panels.
Furniture assembly.

Material Options:

Stainless steel and coated steel.

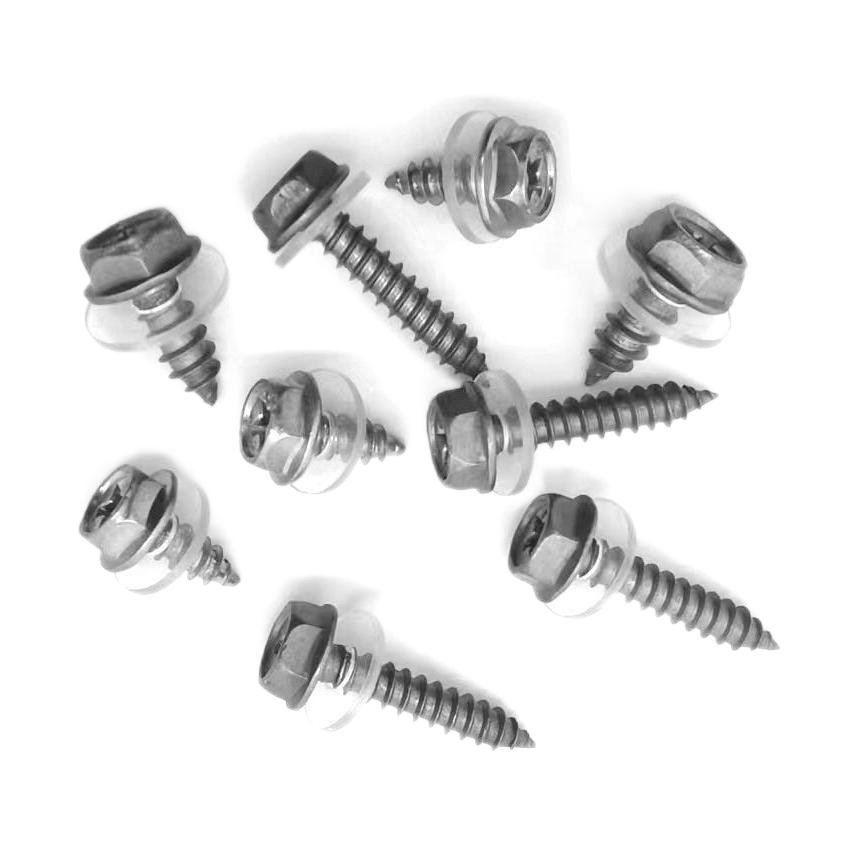

Zinc-nickel coated cross hexagon flange self-tapping Screw supplier

6. Hex Lag Screws

Hex lag screws, also known as lag bolts, are heavy-duty fasteners used for securing heavy objects to wood or other soft materials. They feature a coarse thread and a pointed tip for penetration.

Key Features:

Thick, sturdy design for heavy loads.
Typically made from carbon steel and often galvanized for corrosion resistance.

Applications:

Deck building.
Securing wooden beams.
Mounting heavy equipment to wooden surfaces.

Material Options:

Hot-dipped galvanized steel, stainless steel.

7. Shoulder Hex Screws

Shoulder hexagon screws have a smooth, unthreaded section (shoulder) between the threaded portion and the head. These screws are used when rotational or sliding motion is required for the fastened parts.

Key Features:

Precision-manufactured shoulders.
Available in various diameters and lengths.

Applications:

Pivots and joints.
Machinery with moving parts.
Automotive and aerospace industries.

Material Options:

Alloy steel and stainless steel.

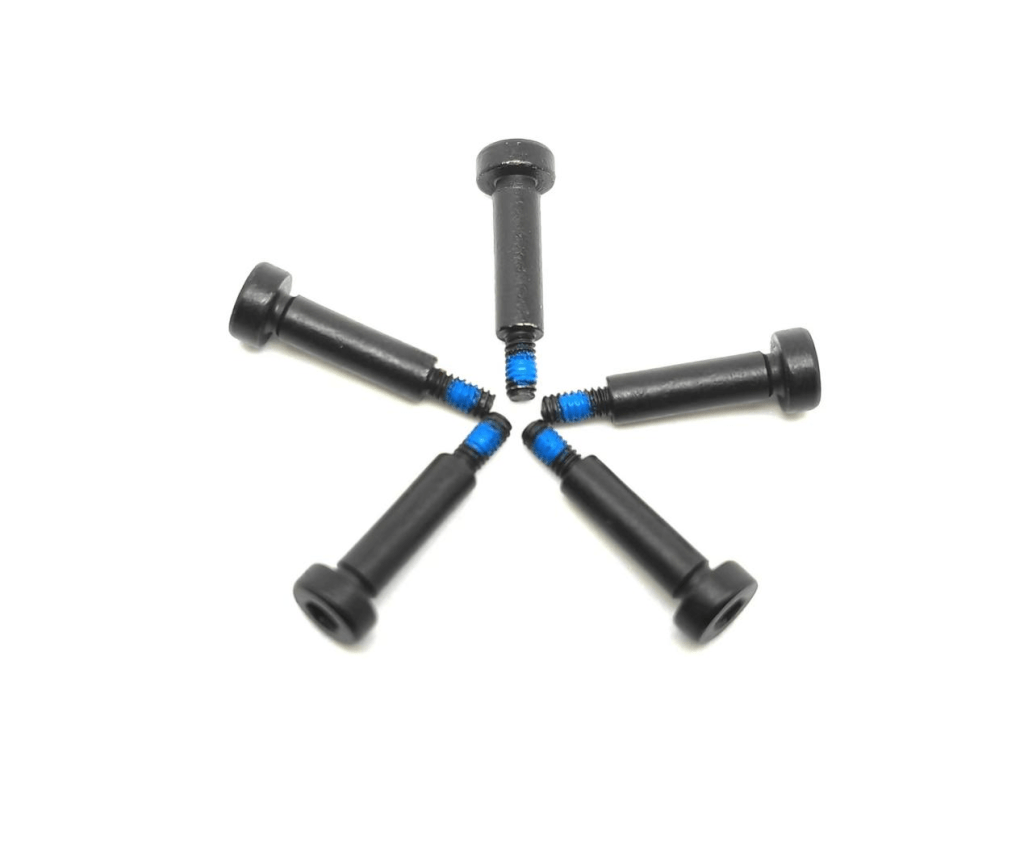

Hexagon Socket Head Shoulder Screw Manufacturers

Key Factors to Consider for Selecting the Right Hex Screws

This chart provides a clear, quick-reference guide for selecting the ideal hex screws for any project.

Factor	Details	Why It Matters
Application Type	Structural, machinery, electronics, or general fastening.	Ensures the screw meets functional and load requirements.
Thread Type	Fully threaded for stronger holding power; partially threaded for greater shear strength.	Matches the screw to specific load and assembly needs.
Material	Options include stainless steel, carbon steel, alloy steel, or titanium.	Determines strength, weight, and corrosion resistance.
Coating/Finish	Zinc plating, galvanization, black oxide, or uncoated.	Enhances corrosion resistance and suitability for environmental conditions.
Size	Diameter and length should match the material and application.	Ensures proper fit and load-bearing capacity.
Head Type	Hex head, flange head, socket head, or washer head.	Affects tool compatibility and load distribution.
Environment	Indoor, outdoor, marine, or corrosive settings.	Prevents premature failure due to rust or environmental factors.
Load Requirements	High-stress, moderate-load, or light-duty applications.	Avoids underperformance or damage in high-stress scenarios.
Ease of Installation	Self-tapping or pre-threaded screws based on tooling available.	Saves time and ensures efficiency during assembly.
Aesthetic Considerations	Low-profile heads or polished finishes for visible components.	Maintains a clean, professional appearance for exposed applications.

To sum up, hex screws come in various types, each suited to specific applications and materials. Understanding the different types of hexagon screws ensures you select the right screws for your project, ensuring durability, safety, and performance.
