What are Types of Set Screws and Their Uses

Set screws may be small, but they play a crucial role in holding various components together. These unassuming fasteners offer versatility and reliability in a wide range of applications. In this article, we will explore the world of set screws, their types, and their diverse uses, shedding light on the importance of a well-curated set screw assortment.

What are the Set Screws?

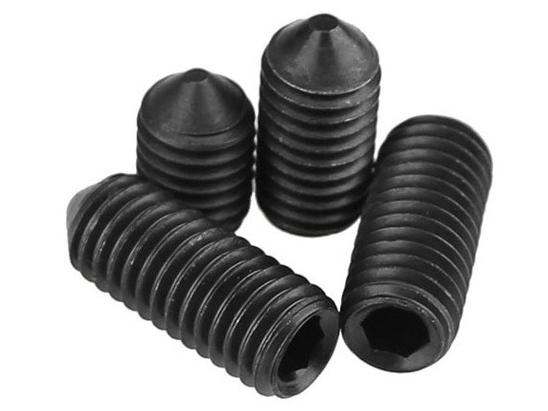

Set screws, also known as grub screws, are threaded fasteners with no external head. Instead, they rely on their threaded body and tip to secure objects in place. These unthreaded gems come in a variety of types, each designed to cater to specific applications and demands.

What are Types of Set Screws and Their Uses?

Set screws come in various types, each designed for specific applications and requirements. The choice of set screw type depends on factors like the nature of the connection, the materials being fastened, and the intended use. Here are some common types of set screws and their typical uses:

Set Screw Type	Common Uses
Cup Point Set Screw	Securing objects without marring surfaces (e.g., pulleys, collars on shafts).
Flat Point Set Screw	Providing flush, surface-level connections (often used for aesthetics and alignment).
Cone Point Set Screw	Offering a strong, non-slip grip for precision applications (securing components on shafts).
Oval Point Set Screw	Balancing grip and aesthetics, suitable for applications where both functionality and appearance matter.
Half-Dog Point Set Screw	Allowing precise adjustment and alignment in machinery and tooling applications.
Nylon-Tip Set Screw	Providing a non-marring, vibration-resistant connection, commonly used in electronics and instrumentation.
Cone-Point Socket Set Screw	Enabling recessed fastening with a strong grip, used for securing knobs or handles to shafts.
Flat-Point Socket Set Screw	Achieving flush, low-profile fastening in various applications without compromising strength.
Cup-Point Socket Set Screw	Offering a powerful, recessed grip for strong, non-slip connections without surface damage.

What are the Applications of Set Screws?

Now that we have delved into the types of set screws and their respective uses, let’s explore the practical applications where these humble fasteners shine:

Mechanical Assemblies: Set screws play a pivotal role in mechanical assemblies, securing pulleys, gears, and couplings to shafts. Their precise grip ensures efficient power transmission and smooth machinery operation.

Electronics and Instrumentation: In the world of electronics and instrumentation, set screws with nylon tips or flat points are vital for securing delicate components without causing damage or vibrations.

Furniture and Cabinetry: Set screws are a staple in furniture and cabinetry construction, holding knobs, handles, and other decorative elements firmly in place while preserving the overall aesthetic.

Automotive and Aerospace: From engine components to aircraft instrumentation, set screws find applications in both automotive and aerospace industries, where precision and reliability are paramount.

HVAC and Plumbing: In HVAC systems and plumbing fixtures, set screws secure critical components, ensuring efficient and reliable operation.

Consumer Products: The consumer product industry relies on set screws for various applications, from securing camera lenses to locking phone components in place.

Machinery and Tooling: Set screws are indispensable in jigs, fixtures, and tooling, holding workpieces securely during machining and assembly processes.

Firearms and Sporting Equipment: Set screws play a role in securing sights, grips, and stocks in firearms and sporting equipment, ensuring accuracy and user safety.

Conclusion

Set screws, though often overlooked, are the unsung heroes that keep countless components together. Their diverse types cater to various applications, from securing machinery components to delicate electronics. Understanding the right set screw for the task at hand and maintaining a well-organized set screw assortment is crucial for achieving optimal performance and reliability in a wide range of industries. So, the next time you encounter these unassuming fasteners, remember their pivotal role in keeping things securely in place, ensuring the smooth functioning of the world around us.
