What is a Carriage Bolt
Table of Contents
Carriage bolt is a fastener with a unique head design, typically used for connecting materials such as wood and metal.
What does a carriage bolt look like? Well, its head is usually semi-rounded with a square protruding section underneath, which helps prevent the bolt from rotating during installation. The threads of a carriage bolt are typically full-threaded, designed to pair with nuts or other fasteners, providing a strong connection.
Types of Carriage Bolt
There are several types of carriage bolts, each designed for specific applications and materials. The most common types include:
Standard Carriage Bolt
This is the most common type, typically featuring a smooth, rounded head with a square neck under the head to prevent rotation. It is primarily used in wood and soft materials.
T-Head Carriage Bolt
The T-head carriage bolt features a T-shaped head, making it suitable for specialized applications where a flat surface is needed for bolting, often used in railings or machinery.

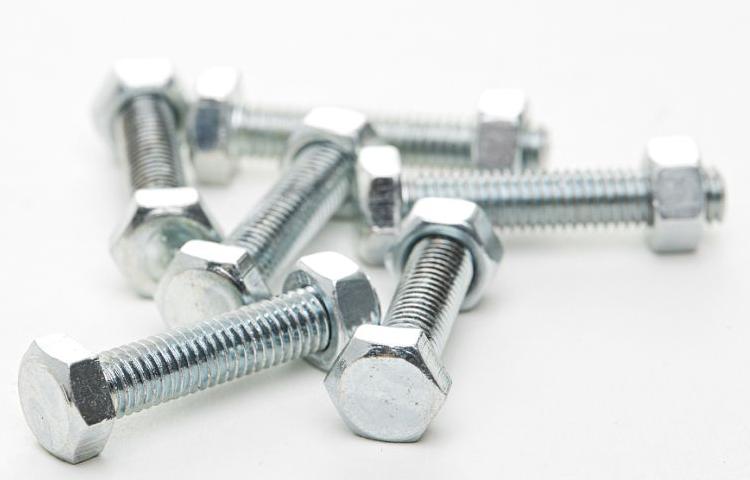

Hex-Head Carriage Bolt
Similar to the standard carriage bolt, but with a hexagonal head instead of a rounded one. This type is used for installation where a wrench or socket is required, providing a stronger grip during tightening.
Hot-Dip Galvanized Carriage Bolt
These bolts are coated with a layer of zinc through hot-dip galvanization, making them more resistant to corrosion. They are typically used in outdoor or heavy-duty applications.
Heavy-Duty Carriage Bolt
These bolts are designed for more robust applications, typically made from high-strength materials, and are used when extra tensile strength is required, such as in heavy equipment or structural projects.

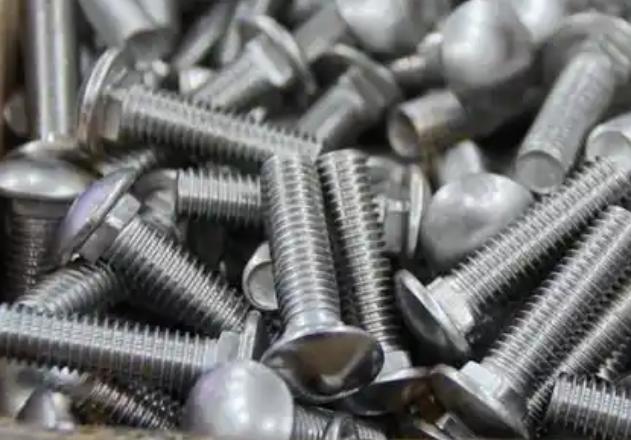

Stainless Steel Carriage Bolt
These bolts are made of stainless steel and offer higher corrosion resistance and are ideal for outdoor or marine environments where rust resistance is important.

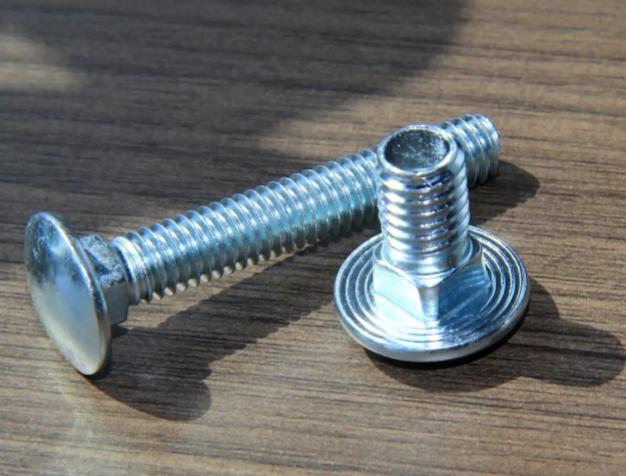

What is a Carriage Bolt Used for?
What is a carriage bolt used for? It is primarily used as a fastener in various applications where a secure, non-rotating connection is required. Here are some common uses of it:
1. Woodworking Projects
Carriage bolts are widely used in woodworking to fasten wooden beams, posts, or planks, especially in outdoor structures like decks, fences, and pergolas. The square neck under the head helps prevent the bolt from turning, ensuring a secure connection when tightened.
2. Metal-to-Wood Connections
Carriage bolts are commonly used to attach metal to wood, such as in the construction of metal frames or brackets that are fastened to wooden structures. The smooth, rounded head prevents damage to the material being fastened.

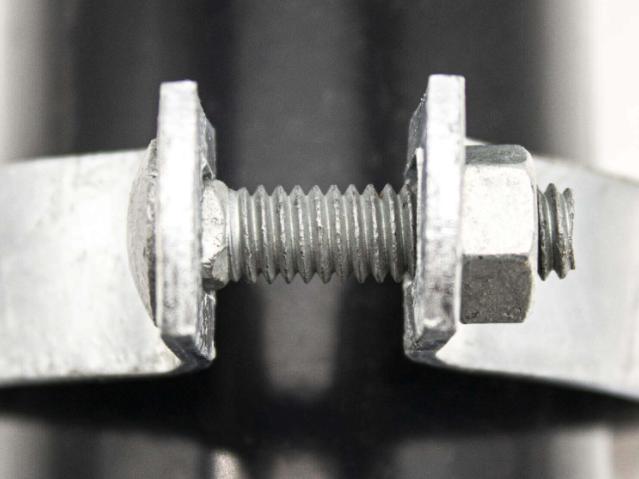

3. Outdoor and Heavy-Duty Applications
With the ability to resist corrosion (especially when galvanized or made from stainless steel), carriage bolts are ideal for outdoor or heavy-duty applications. This includes use in agricultural equipment, bridges, and other structural elements exposed to the elements.
4. Automotive and Machinery Assembly
Carriage bolts are used to secure parts in machinery and automotive assemblies, where a strong connection is required but the head needs to remain flush or unobtrusive.
5. Railings and Staircases
Carriage bolts are often used to secure handrails or balusters in staircase and railing construction. The smooth, rounded head ensures that there are no sharp edges that could cause injury, while the square neck provides stability.
6. Building Frames and Timber Structures
In large building projects or timber frame construction, carriage bolts are used to join beams and columns, providing strength and stability to the structure.
7. Furniture Assembly
Carriage bolts are sometimes used in furniture making, especially for joining metal or wooden parts in the assembly of items like tables, bed frames, and shelving units.

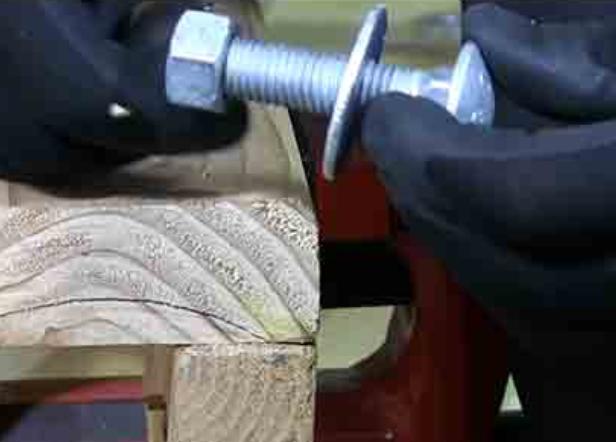

How to Use & Install Carriage Bolt?
Installing a carriage bolt is a straightforward process, but ensuring proper installation is crucial for a secure and stable connection. Here’s a step-by-step guide on how to use and install a carriage bolt.
Step 1. Prepare the Materials
Fastening Materials: Ensure that the wood or metal pieces you are connecting are aligned and ready to be fastened.
Choose the Right Size Bolt: Select a carriage bolt that is long enough to go through the materials you’re connecting with enough thread to accommodate a nut.
2. Drill the Hole
Use a drill to create a hole that matches the diameter as the carriage bolt. The hole should be slightly larger than diameter of the bolt shaft to allow it to pass through smoothly.
When drilling through wood, ensure the hole is drilled straight and evenly to allow the bolt to pass through properly.
3. Insert the Carriage Bolt
Insert the carriage bolt through the hole with the rounded head facing outward (on the side that will be exposed). The square neck of the carriage bolt should sit snugly against the material to prevent it from rotating.
In some cases, you may need to gently tap the bolt with a hammer to ensure it fits tightly into the hole and the square neck grips the wood or metal.
4. Add a Washer (Optional)
If needed, place a washer on the bolt shaft before adding the nut. This can help distribute the load more evenly and prevent damage to the surface material, especially when fastening to softwood.
5. Secure with Nut
On the opposite side of the material, slide a nut (and possibly a washer) onto the exposed end of the carriage bolt.
Tighten the nut using a wrench or socket wrench. Ensure it is tightly secured, but be careful not to overtighten, which could damage the materials or strip the threads.
6. Ensure the Bolt is Secure
Once the nut is tightened, check to make sure the carriage bolt is flush with the surface and that the connection is secure and tight. The square neck of the bolt should prevent it from turning, ensuring a firm hold.
7. Finish the Installation
If necessary, apply a lock nut or use a thread-locking compound for added security, especially in outdoor or heavy-duty applications where vibration or movement could loosen the connection over time.
Tips for Proper Installation:
- Use the Correct Size Bolt: Ensure the bolt is long enough to pass through all materials being fastened, but not so long that it causes unnecessary protrusion or difficulty when tightening the nut.
- Avoid Over-Tightening: While the bolt should be tightly fastened, overtightening can damage the materials or strip the bolt threads.
- Use Lock Washers: In applications subject to vibrations or movement, using a lockwasher or a locking nut can help prevent loosening over time.

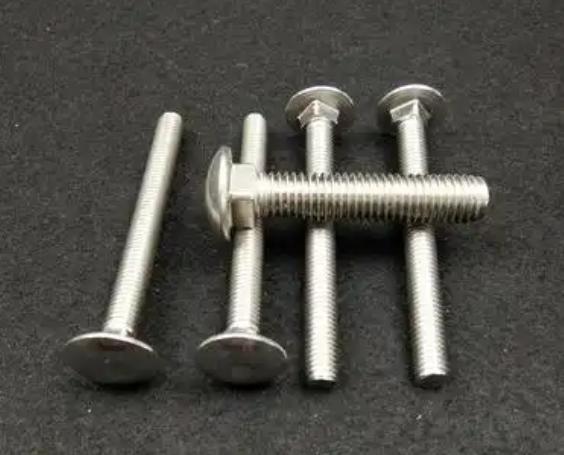

Advantages of Carriage Bolt
Carriage bolts offer several benefits that make them ideal for a variety of construction, woodworking, and industrial applications. Here are some key advantages:
Prevents Rotation: The square neck under the rounded head prevents the bolt from rotating during installation, ensuring a secure connection.
Flush, Smooth Head: The rounded head creates a smooth, flush finish, ideal for projects where safety and aesthetics matter, such as furniture and railings.
Versatility: Suitable for a wide range of materials, including wood, metal, and plastic, making them ideal for construction, woodworking, and industrial applications.
Strong and Secure: Carriage bolts offer excellent tensile strength and load-bearing capacity, ensuring a reliable and durable connection.
Corrosion Resistance: Available in galvanized or stainless steel versions, carriage bolts are resistant to rust, making them ideal for outdoor or harsh environments.
Easy to Install: Simple to install with basic tools like a wrench, making it convenient for both professionals and DIYers.
How to Choose the Right Carriage Bolt?
When choosing a carriage bolt, several factors should be considered to ensure a secure and durable connection. Here’s a detailed guide to help you make the right decision.
1. Material Type
The material of the carriage bolt is critical as different materials are suitable for different environments:
- Wood Connections: Standard steel carriage bolts are commonly used for wood-to-wood connections and light-duty applications.
- Metal Connections: For metal-to-metal connections, choose bolts made of carbon steel or alloy steel for higher strength.
- Corrosive Environments: In wet, corrosive, or chemically exposed environments, opt for stainless steel or hot-dip galvanized bolts, which offer higher resistance to rust and corrosion. These are ideal for outdoor or marine applications.
2. Size and Length
Choosing the correct size and length of the bolt is essential for proper fit:
- Diameter: The bolt’s diameter should match the thickness of the materials being connected and the load it will bear. Larger bolts provide more strength, but make sure the hole size is appropriate for a snug fit.
- Length: The bolt should be long enough to pass through the materials being connected, with enough threads exposed to accommodate a nut. Typically, the length should be slightly longer than the material thickness to ensure a secure connection.
3. Load Requirements
For connections that need to bear significant tension or pressure, choose bolts with higher load-bearing capacity:
- Light Load: For light-duty connections, standard steel or galvanized carriage bolts are usually sufficient.
- Heavy Load: For applications requiring heavy-duty support, choose high-strength alloy steel or stainless steel bolts to handle greater forces.
4. Environmental Factors
Consider the external conditions like temperature, humidity, and corrosiveness when choosing a carriage bolt:
- Temperature: For high or low temperature applications, select bolts that can withstand extreme conditions. Stainless steel bolts are good for high-temperature environments, while specific alloys are better suited for very low temperatures.
- Humidity and Corrosiveness: For environments exposed to high humidity or chemicals (like seawater or industrial chemicals), choose materials with high corrosion resistance, such as hot-dip galvanized or stainless steel bolts.
- Vibration: If the application involves significant vibration (e.g., machinery or vehicles), consider using bolts with locking features or pairing with nuts and washers to prevent loosening.
In Conclusion
In conclusion, carriage bolts, with their unique design and superior performance, have become an indispensable fastening component in various engineering projects. If you are looking for custom carriage bolts, KENENG is your best choice. As a professional fastener supplier, KENENG offers a wide range of specifications and materials for carriage bolts, catering to diverse engineering needs. Don’t hesitate to contact them!
FAQs about Carriage Bolt
What is the difference between a carriage bolt and a regular bolt?
The key difference between a carriage bolt and a regular bolt is the head design. A carriage bolt has a rounded head with a square neck that prevents rotation during installation, making it ideal for wood and metal connections. A regular bolt usually has a hexagonal head that is fully threaded and requires a nut to secure it.
What is another name for a carriage bolt?
Another name for a carriage bolt is a coach bolt. This term is commonly used in the UK and other regions.
Are carriage bolts structural?
Yes, carriage bolts are considered structural fasteners. They are designed to provide strong, secure connections, especially in wood and metal applications. Their square neck prevents rotation, making them ideal for structural projects like furniture, bridges, and other load-bearing structures where a reliable and stable connection is needed.
