What is CNC Milling? All You Need to Know
What is CNC milling? Well, CNC milling (Computer Numerical Control Milling) is a widely used precision machining technology in modern manufacturing. With computer programs, CNC milling can efficiently and accurately process complex-shaped workpieces, including metals, plastics, and composites, by controlling the operation of the milling machine.
In this post, we will explore everything about CNC milling and introduce a reliable CNC machining services provider. Let’s dive in!
Table of Contents
Part 1. How Does CNC Milling Work?
The working principle of CNC Milling is based on converting designed part drawings into digital signals that can be understood by computers, thus controlling the movement of the milling machine and cutting tools. Here’s a detailed explanation of how CNC milling works:
Computer Program Control: CNC milling uses programming languages such as G-code to input information such as the machining path and tool motion trajectory into the CNC system. The machine executes the machining process based on these instructions automatically.
Tool Rotation: On a CNC milling machine, the tool moves along the X, Y, and Z axis in accordance with the shape and dimensional requirements of the workpiece. The tool rotates and feeds to cut the material, gradually achieving the desired shape.
Multi-axis Movement: Modern CNC milling machines typically have multi-axis systems (such as 3-axis, 4-axis, 5-axis, etc.) that can control tool movements in multiple directions simultaneously, enabling the machining of complex geometric shapes.
Part 2. Features of CNC Milling Machine
As an indispensable key equipment in modern manufacturing, CNC milling machines have been widely used across various industries due to their outstanding performance and versatility.
Below are some of the key features of CNC milling machines, which give them with unparalleled precision machining capabilities:
1. High Precision
CNC milling machines use computer programs to control the movement of cutting tools, resulting in extremely high machining precision. Compared to traditional manual operations, the error in CNC milling machines is minimal, often only reaches the micron level, ensuring that the dimensions and shapes of the processed parts meet strict tolerances.
2. Automated Processing
CNC milling machines can perform the entire machining process, from tool selection and workpiece positioning to the control of machining paths automatically. This automation significantly improves production efficiency and reduces human involvement.
3. Multi-axis Control
Modern CNC milling machines are typically equipped with multi-axis systems (such as 3-axis, 4-axis, 5-axis, etc.), enabling machining in multiple directions simultaneously. This enables CNC milling machines to handle more complex and intricate parts, particularly those with intricate geometric shapes.

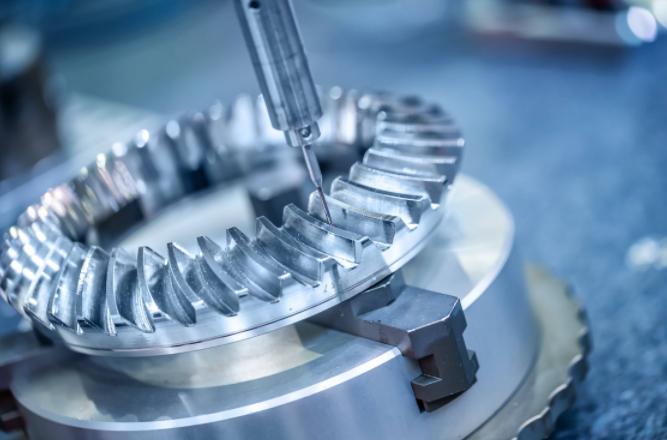

4. High Flexibility
CNC milling machines are used to mill various materials, including metals, plastics, and composites. By changing tools and adjusting programs, they can process various types of workpieces, meeting the needs of various industries.
5. Complex Part Machining Capability
Due to their multi-axis control and high precision, CNC milling machines can process parts with complex shapes, such as curved surfaces, inclined surfaces, and irregular geometries. This makes CNC milling machines the preferred choice for industries such as aerospace, automotive manufacturing, and mold processing.
6. Efficiency and Consistency
The programmed operation and automated control of CNC milling machines ensure that each machining result is highly consistent, reducing human errors and improper operations. This is particularly important for mass production, as it guarantees stable quality for every single part produced.
Part 3. Types of CNC Milling
CNC milling machines come in a variety of types based on their functions, working methods, and the number of controlled axes. Each type of processing has its own advantages, depending on the complexity of the task being processed. Below are some common types of CNC milling machines:

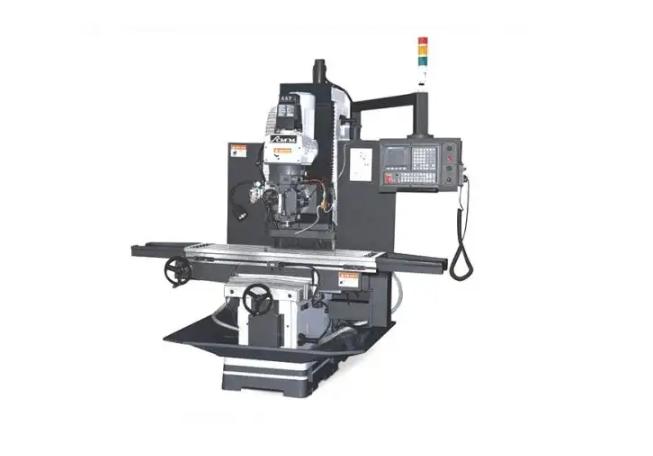

Vertical CNC Milling Machine
Vertical CNC milling machines are the most commonly used type, characterized by a spindle that is parallel to the work table. They are suitable for operations such as surface milling and hole drilling.
Vertical CNC milling machines are commonly used for smaller workpieces and offer high precision and stability. They are widely used in industries such as mold manufacturing, machinery processing, and more.
Horizontal CNC Milling Machine
Horizontal CNC milling machines have a spindle parallel to the work table, making them ideal for large-scale, high-precision machining. They can handle larger workpieces and provide greater stability during the machining process.
Horizontal CNC milling machines are commonly used for manufacturing large or heavy parts, such as engine components and mechanical bases.

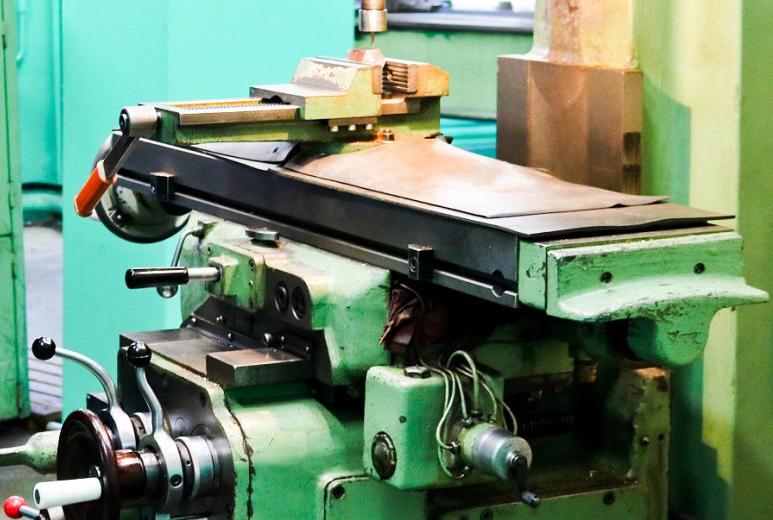

Universal CNC Milling Machine
Universal CNC milling machine combines the capabilities of both vertical and horizontal milling machines, allowing for operation in various machining modes. It provides greater versatility and can handle a variety of workpieces, making it suitable for environments that require frequent changes in machining methods.
Multi-Axis CNC Milling Machines
Multi-axis CNC milling machines are advanced machines that allow the cutting tool or workpiece to move along multiple axes simultaneously. Multi-axis machines can incorporate additional axes, such as the A, B, and C axes, allowing for more complex and precise machining.
These machines are particularly useful for producing intricate parts with complex geometries, such as aerospace components, medical devices, and automotive parts.
By enabling machining from multiple angles without the need to reposition the workpiece, multi-axis CNC milling machines improve efficiency, reduce setup times, and deliver higher accuracy and surface quality.
Part 5. What are 3,4,5-Axis CNC Milling Machine?

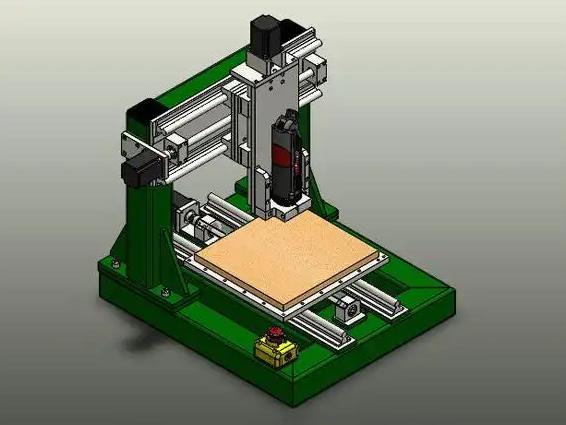

3-Axis CNC Milling Machine
3-Axis CNC milling machine is the most basic and widely used type of CNC milling machine. It operates on three primary axes: the X-axis (horizontal), Y-axis (vertical), and Z-axis (depth). The cutting tool moves in three directions to shape the workpiece.
This machine is ideal for simple tasks such as drilling, surface milling, and 2D cutting. However, it can only handle relatively flat or simple geometries.
4-Axis CNC Milling Machine
4-Axis CNC milling machine extends the capabilities of a 3-axis machine by adding a rotational axis (usually the A-axis), which allows the workpiece to rotate around one axis.
This enables the machine to perform more complex tasks such as machining angular or contoured surfaces, grooves, and holes at multiple angles without moving the workpiece. The additional axis enhances machining flexibility and precision by allowing the tool to approach the workpiece from different directions.

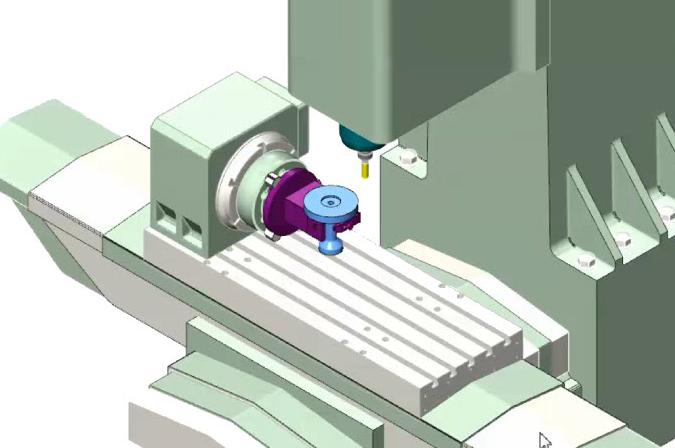

5-Axis CNC Milling Machine
5-Axis CNC milling machine offers the most advanced functionality by adding two additional rotational axes (usually the A-axis and B-axis), allowing the tool to move in five directions simultaneously.
This enables the machining of complex, three-dimensional geometries that would otherwise require multiple machine setups or special fixtures. 5-axis CNC milling machines, commonly used in high-precision industries such as aerospace, medical devices, and automotive, are used to manufacture intricate, curved, or complex parts.
Part 6. Where is CNC Milling Used?
CNC milling, due to its high precision and multifunctionality, is widely used in various industries, particularly those that require precision machining and complex parts. The following are the main application areas of CNC milling:
Aerospace Industry
In the aerospace industry, CNC milling is widely used to manufacture aircraft components, engine parts, turbine blades, and structural components. CNC milling provides extremely precise machining since these parts often have complex geometries and require high precision. This ensures the performance and safety of the components.
Use Cases: Aircraft fuselage components, engine casings, turbine blades.
Automotive Industry
In automotive manufacturing, CNC milling is mainly used for machining engine components, body parts, chassis assemblies, transmission systems, and other precision parts. The high precision and efficiency of CNC milling make it an ideal choice for mass production and custom parts in the automotive industry.
Use Cases: Engine blocks, brake discs, transmission components, wheel hubs.
Medical Industry

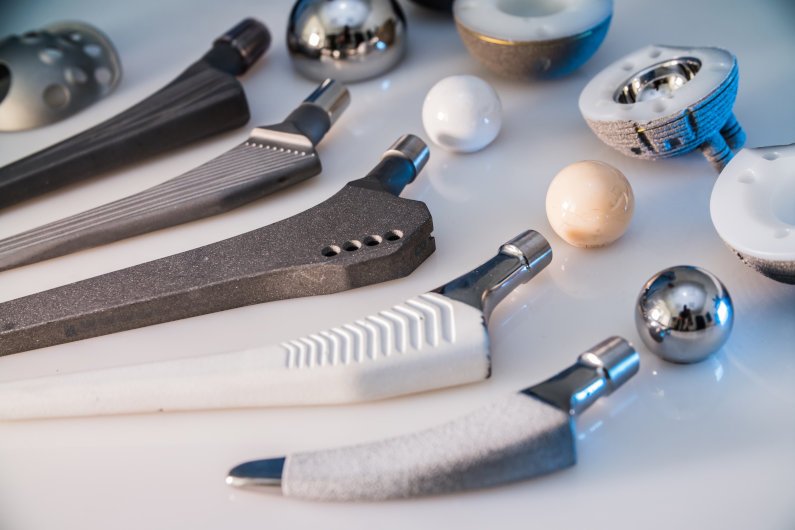

CNC milling plays a crucial role in the manufacture of medical devices, particularly in making complex medical equipment parts and prosthetics. CNC milling can handle irregular shapes with high precision, making it ideal for producing artificial joints, orthopedic implants, and other precise medical devices.
Use Cases: Artificial joints, orthopedic implants, dental devices.
Electronics and Electrical Industry
In the electronics and electrical sectors, CNC milling is used to manufacture various precision electrical components, connectors, heat sinks, housings, and more. As many electronic parts are small in size and complex in shape, the high precision of CNC milling is well-suited to meet the demands of this field.
Use Cases: Electronic enclosures, heat sinks, circuit board mounts.
Energy and Oil & Gas
In the energy sector, especially in oil, gas, and nuclear energy, CNC milling is used to machine critical components such as pump housings, valves, compressor parts, and pressure vessels. The precision machining requirements ensure the efficiency and reliability of these critical components.
Use Cases: Pump housings, valves, pressure vessels, wind turbine components.
Consumer Goods and Home Appliances
In the consumer goods and home appliance sectors, CNC milling is primarily used to manufacture various precision parts, such as appliance housings, electronic accessories, automotive components, and high-end consumer product parts. CNC milling can handle various materials, ensuring the quality and appearance of the products.
Use Cases: Appliance housings, electronic accessories, automotive interior parts.
Prototyping and Rapid Prototyping
CNC milling is also widely used in prototyping and rapid prototyping. Designers can use CNC milling machines to quickly create prototypes of parts to verify designs or conduct small-batch production. This rapid iteration and precise prototyping help accelerate product development.
Use Cases: Product prototypes, experimental models, rapid prototyping parts.
Partner with KENENG for Your CNC Machining Needs
If you are looking for high-precision, reliable CNC milling services, KENENG is your ideal partner. It has advanced CNC milling equipment and a team of skilled engineers who can provide tailored machining solutions. Whether it’s small-batch production or complex part machining, KENENG is dedicated to providing the highest quality service.
