What is CNC Turning

In the stage of modern manufacturing, CNC turning is like a master sculptor, wielding high-speed rotating tools to transform metal or plastic blanks into intricately shaped components.

But how exactly does CNC turning perform this “magic”? What are the different machining methods involved? And what materials can it handle?

In the following sections, we will take you on a deep dive into the secrets of this technology, exploring how a simple metal blank, under the precise control of a CNC system, can be transformed into high-performance parts.

Part 1. Understanding the Process of CNC Turning

CNC turning is a type of numerical control machining that utilizes a Computer Numerical Control (CNC) lathe to rotate the material while a fixed or movable cutting tool removes excess material to form the desired shape.

This process ensures high precision and repeatability, making it particularly suitable for mass production of shaft parts, flanges, threads, and other components. Compared to traditional manual lathes, CNC turning reduces human error, enhances processing speed, and improves consistency.

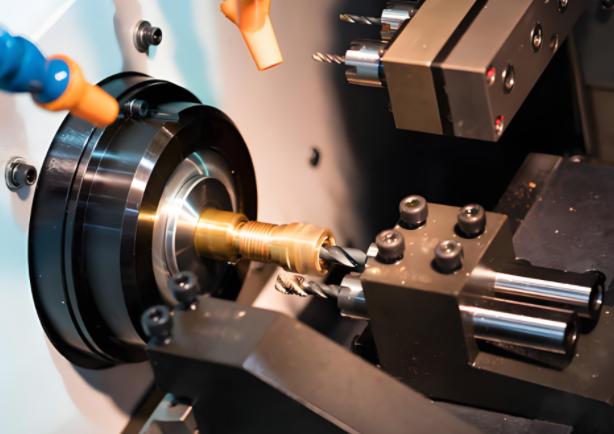

Part 2. How Does CNC Turning Work?

CNC turning is a machining method that uses Computer Numerical Control (CNC) technology to control the movement of a lathe. Its basic principles are:

Material Rotation: The workpiece (usually a bar or cylindrical blank) is fixed on the spindle and rotates at high speed.
Tool Cutting: The tool moves along the axial or radial direction of the workpiece, continuously cutting to form the desired shape.
Program Control: The CNC program controls parameters such as the tool’s movement path, feed rate, and cutting depth to achieve high-precision machining.

CNC turning can be used for a variety of machining operations such as outer diameter, inner hole, end face, grooving, and threading, making it suitable for mass production and the manufacturing of high-precision parts.

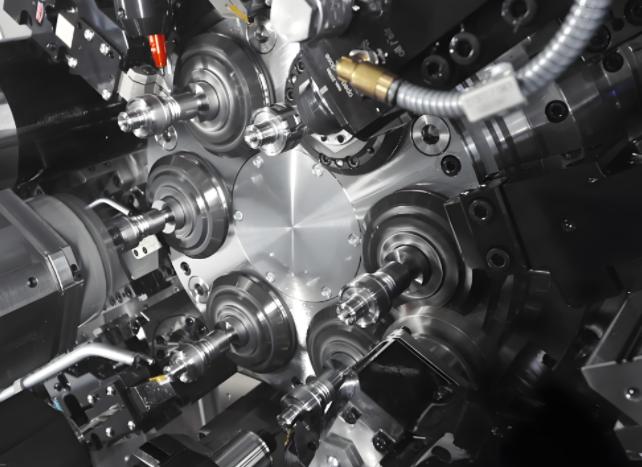

Part 3. Types of CNC Turning Machines

CNC turning is typically performed on different types of CNC lathes, depending on the machining requirements and structure. Below are several common types of CNC lathes, each with its specific application:

1. Horizontal CNC Lathe

The horizontal CNC lathe is the most common type, suitable for machining long, shaft-like parts. Its features include:

The tool moves horizontally, effectively removing material.
It is ideal for various turning operations, such as outer diameter, inner hole, end face, and threading.
The workpiece is fixed on the horizontal spindle and rotates as the tool performs machining.
Typically used for mass production of long parts, providing high stability and production efficiency.

2. Vertical CNC Lathe

Vertical CNC lathes are suitable for machining large-diameter, short-length workpieces, such as large flanges and discs. Key characteristics include:

The workpiece is mounted vertically using gravity to stabilize the part and ensure machining accuracy.
This configuration is particularly suited for larger, heavier parts, increasing machining precision and stability.
The tool moves in a vertical direction, making it ideal for processing small-diameter, high-profile parts.

3. Swiss-Type CNC Lathe

Swiss-type CNC lathes are used for precision machining of small parts, such as components for medical devices and electronics. Its features are:

The workpiece moves axially, allowing the tool to perform fine, precise cuts, especially for small and intricate parts.
The sliding headstock design allows for highly accurate and consistent cutting, particularly for long, slender parts.
This lathe is ideal for mass production of high-precision, small components, such as screws, pins, and micro-parts.

4. Multi-Axis CNC Lathe

Multi-axis CNC lathes are equipped with multiple axes (such as 3-axis, 4-axis, or 5-axis) to perform complex machining operations, reducing the need for secondary operations. Key features include:

The ability to move along multiple axes simultaneously, enabling more complex machining and reducing the need for multiple setups.
These lathes can perform turning, milling, and drilling operations, improving production efficiency.
Especially suited for machining complex parts, such as components in the aerospace, automotive, and medical industries.
They can complete a variety of machining processes on a single machine, greatly improving flexibility and efficiency.

Part 4. Materials Used in CNC Turning

CNC turning can process a variety of materials, each suitable for different industries, for example:

1. Metal Materials

Aluminum Alloys (lightweight, corrosion-resistant, commonly used in aerospace and automotive industries)
Stainless Steel (high strength, corrosion-resistant, used in medical devices and food processing equipment)
Brass (good conductivity, used in electronics and precision instruments)
Titanium Alloys (high strength, heat-resistant, widely used in aerospace and medical implants)

2. Plastic Materials

POM (Delrin) (high strength, wear-resistant, used for gears and pulleys)
ABS (lightweight, impact-resistant, commonly used for electronic housings)
PEEK (high temperature and chemical resistance, used in medical and aerospace industries)

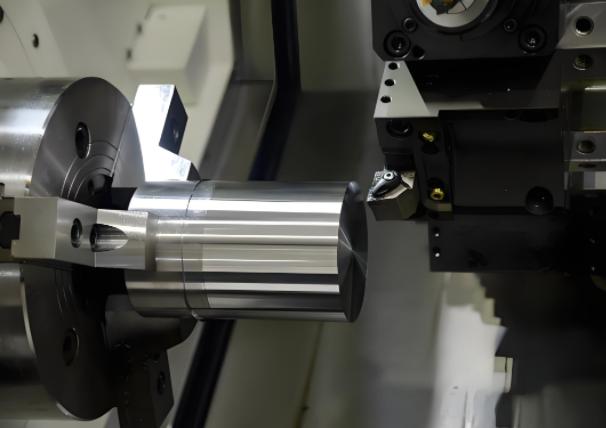

Part 5. Applications of CNC Turning

CNC turning is widely used across various industries due to its precision and versatility. Key applications include:

Automotive Industry: CNC turning is used to manufacture engine components, transmission parts, and wheel hubs, ensuring high precision for optimal performance and durability.

Aerospace: In aerospace, CNC turning is used for producing aircraft parts, rocket components, and other high-precision components that require strength and lightweight properties.

Medical Devices: CNC turning is essential for creating surgical instruments, orthopedic implants, and medical device components with high accuracy and quality.

Electronics Manufacturing: CNC turning is used to produce small, precise components such as connectors, micro shafts, and brackets for electronic devices.

Robotics and Automation: CNC turning helps manufacture critical parts like robot joints, drive shafts, and structural components that are essential for the functioning of robotic systems.

Part 6. CNC Turning vs. CNC Milling

While both CNC turning and CNC milling are essential machining processes, many people confuse them, as they differ in operation, suitable parts, precision, and production efficiency.

Below is a comparison table to help you better understand them.

Comparison Point	CNC Turning (Turning)	CNC Milling (Milling)
Processing Method	The workpiece rotates while the fixed tool cuts the material.	The workpiece is fixed, and the rotating tool cuts the material.
Suitable Parts	Primarily used for cylindrical parts, such as shafts, spindles, and threaded components.	Best for non-symmetrical, complex shapes like brackets, housings, and plates.
Precision	Offers high precision, making it ideal for producing parts with tight tolerances.	Suitable for more intricate and complex shapes but may require additional setups for high precision.
Production Efficiency	Highly efficient for mass production of cylindrical parts with repetitive machining steps.	More flexible and efficient for custom parts, prototypes, and intricate designs, but generally slower for high-volume production.

Part 7. How to Choose the Right CNC Turning Service?

Equipment and Technical Capabilities: Does the provider have advanced CNC lathes capable of meeting high-precision machining requirements?
Material Processing Capabilities: Can they handle a variety of metal and plastic materials?
Production Scale and Delivery Capability: Do they support both small and large-scale production? Is their delivery time stable?
Quality Control: Do they have comprehensive inspection equipment and quality control processes in place?

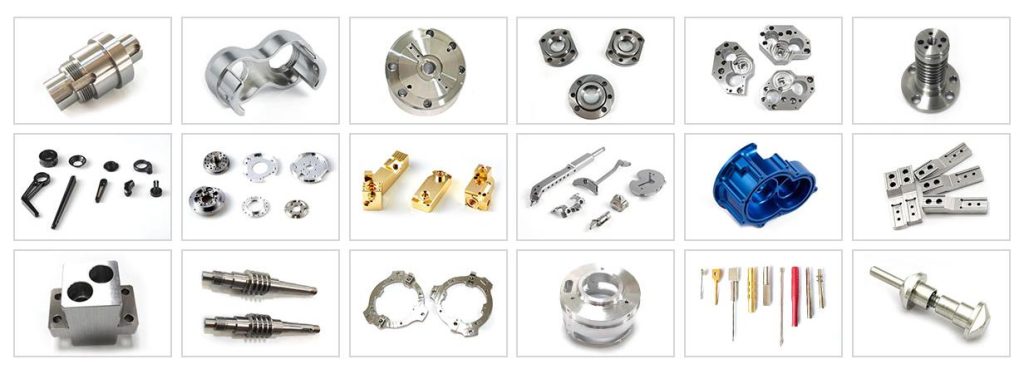

KENENG – Your Trustworthy CNC Turning Service Provider

When it comes to CNC turning services, KENENG stands out as a trusted and reliable partner for businesses worldwide. Here’s why you should choose KENENG for your CNC turning needs:

1. Powerful Manufacturing Capabilities

KENENG boasts a state-of-the-art CNC machining workshop spanning 3,000 square meters, equipped with over 16 high-performance CNC machines. With the capability to handle large volumes, it processes more than 300 machining projects and manufactures over 200,000 parts every month. Our impressive production capacity ensures that we meet your deadlines, no matter the size or complexity of your order.

2. Precision and Advanced Equipment

KENENG’s CNC turning service is powered by advanced machines with a maximum travel distance of:

1270×508×635 mm for 3-axis machines
450×700×400 mm for 5-axis machines, with a rotating worktable of φ400 mm

This allows KENENG to handle a wide range of parts, from small precision components to large, complex workpieces. You can trust us for high-precision results that meet your exact specifications.

3. Professional and Dedicated Team

KENENG is proud to have a highly skilled workforce of over 60 employees specializing in CNC machining. Its team’s expertise ensures the highest level of craftsmanship, delivering parts that consistently exceed quality standards.

4. Proven Track Record with Global Clients

For over 10 years, KENENG has been a trusted supplier to leading brands such as BBC, Xiaomi, Gree, Haier, and BYD. Its long-term partnerships with world-renowned companies demonstrate our ability to deliver consistent, high-quality CNC turning services that meet global standards.

5. Quality Assurance

At KENENG, quality control is a top priority. It employs rigorous inspection systems throughout the production process to ensure that each part meets your exact specifications. From raw material selection to final delivery, it guarantee the highest standards of precision and reliability.

KENENG offers the ideal combination of precision, efficiency, and expertise in CNC turning services. Whether you need rapid delivery, high-volume production, or custom precision parts, it has the capabilities and experience to meet your demands. Choose KENENG for your next CNC turning project, and experience unparalleled quality and service.

Summary

CNC turning, as a crucial processing method in modern manufacturing, is favored by various industries for its high precision, efficiency, and wide range of applications. Choosing the right CNC turning supplier can improve product quality and reduce manufacturing costs. If you have any CNC turning needs, feel free to contact KENENG to get your high-quality CNC machining solutions!
