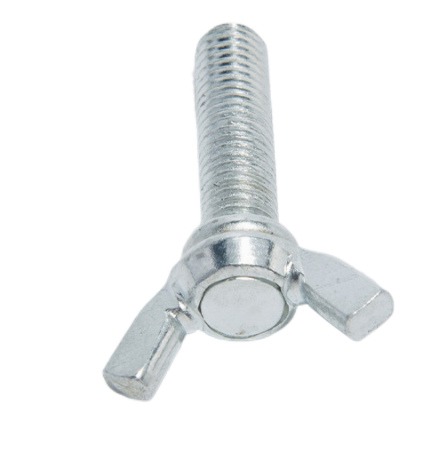

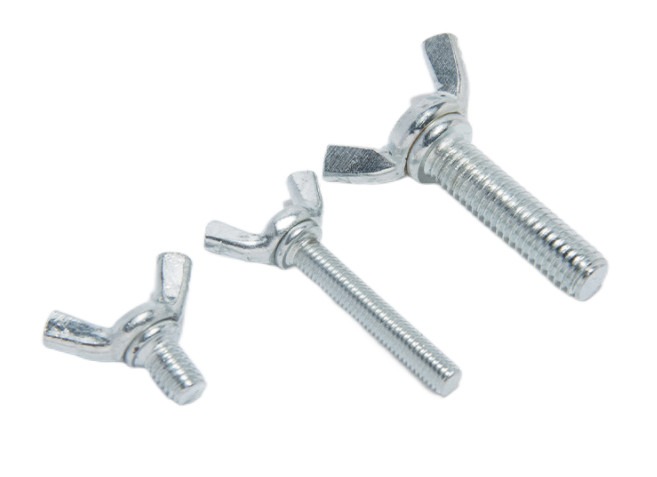

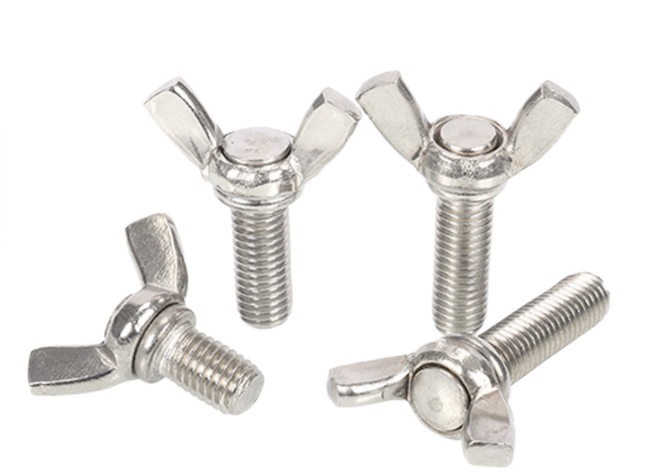

Custom Wing Screw and Nut

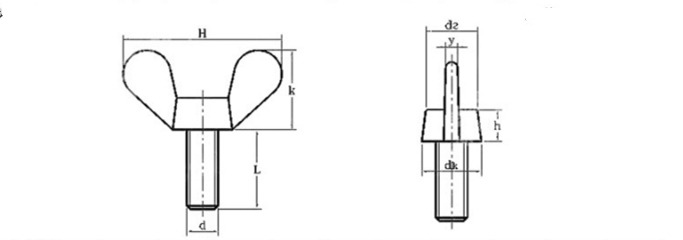

Specification of Wing Screw and Nut
| Nominal diameter | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | |
| P | 0.5mm | 0.7mm | 0.8mm | 1mm | 1.25mm | 1.5mm | 1.75mm | 2mm | 2.5mm | 3mm | |
| dk | max | 7.9mm | 8mm | 11mm | 13mm | 16mm | 20mm | 23mm | 29mm | 35mm | 44mm |
| min | 7mm | 6mm | 8mm | 10mm | 13mm | 17mm | 20mm | 26mm | 32mm | 41mm | |
| d2 | max | 7.5mm | 7mm | 9mm | 11mm | 12.5mm | 16.5mm | 19.5mm | 23mm | 29mm | 37.mm5 |
| min | 6.5mm | 5.5mm | 7.5mm | 9mm | 10.5mm | 14.5mm | 17.5mm | 21mm | 27mm | 35mm | |
| H | max | 19mm | 20mm | 26mm | 33mm | 39mm | 51mm | 65mm | 73mm | 90mm | 110mm |
| min | 16mm | 18mm | 24mm | 30mm | 36mm | 48mm | 62mm | 70mm | 86mm | 106mm | |
| h | max | 4mm | 4.6mm | 6.5mm | 8mm | 10mm | 12mm | 14mm | 17mm | 21mm | 25mm |
| min | 3.3mm | 3.2mm | 4mm | 5mm | 6.5mm | 8mm | 10mm | 13mm | 16mm | 20mm |
Advantages of KENENG Custom Wing Screw and Nut
We produce a wide range of products at reasonable prices, and ensure product quality.
KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
